ELAN-2000 Network Card Settings and Configuration

UNIDENTIFIED

ELAN-2000

NIC Type
Ethernet
Transfer Rate
10Mbps
Data Bus
16-bit ISA
Topology
Linear Bus, Star
Wiring Type
RG58A/U 50ohm coaxial
Boot ROM
Available (Location unidentified)

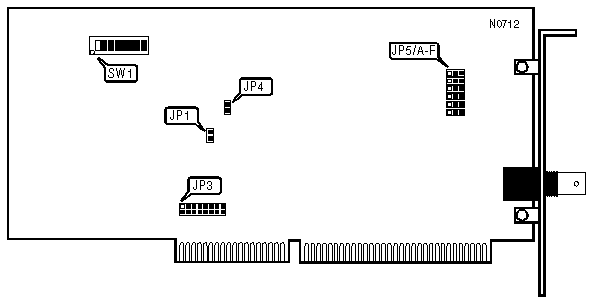

BASE MEMORY ADDRESS SELECT
Address
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
»
C800h
On
On
Off
On
On

CA00h
On
On
Off
On
Off

CC00h
On
On
Off
Off
On

CE00h
On
On
Off
Off
Off

D000h
On
Off
On
On
On

D200h
On
Off
On
On
Off

D400h
On
Off
On
Off
On

D600h
On
Off
On
Off
Off

D800h
On
Off
Off
On
On

DA00h
On
Off
Off
On
Off

DC00h
On
Off
Off
Off
On

DE00h
On
Off
Off
Off
Off

BOOT ROM
Setting
JP4
»
Enabled
Closed

Disabled
Open

CABLE TYPE
Type
JP5/A
JP5/B
JP5/C
JP5/D
JP5/E
JP5/F
»
Thin
Pins 1 & 2
Pins 1 & 2
Pins 1 & 2
Pins 1 & 2
Pins 1 & 2
Pins 1 & 2

Thick
Pins 2 & 3
Pins 2 & 3
Pins 2 & 3
Pins 2 & 3
Pins 2 & 3
Pins 2 & 3
Note: Pins designated should be in the closed position.

INTERRUPT SELECT
IRQ
JP3
»
IRQ3
Pins 1 & 2 closed

IRQ4
Pins 3 & 4 closed

IRQ5
Pins 5 & 6 closed

IRQ9
Pins 7 & 8 closed

IRQ10
Pins 9 & 10 closed

IRQ11
Pins 11 & 12 closed

IRQ12
Pins 13 & 14 closed

IRQ15
Pins 15 & 16 closed

I/O ADDRESS SELECT
Address
SW1/6
SW1/7
SW1/8
»
300h
On
On
On

320h
On
On
Off

340h
On
Off
On

360h
On
Off
Off

380h
Off
On
On

3A0h
Off
On
Off

3C0h
Off
Off
On

3E0h
Off
Off
Off

SYSTEM TYPE
Type
JP1
»
All other
Open

COMPAQ 286 portables, IBM PC 30-286, C & T chipset systems
Closed
