ETHERMAC (FOR MAC SE, IISI) Network Card Settings and Configuration
UNIDENTIFIED
ETHERMAC (FOR MAC SE, IISI)
NIC Type: | Ethernet |
Transfer Rate: | 10Mbps |
Data Bus: | 32-bit SE Processor direct slot (Apple) |
Topology: | Linear Bus Star |
Wiring Type | AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial Shielded/Unshielded twisted pair |
Boot ROM | Not Available |
CABLE TYPE | |

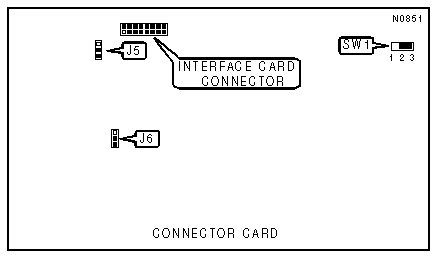

Type | SW1 |
AUI transceiver via DB-15 port | Position 2 |
RG-58A/U 50ohm coaxial | Position 3 |
Shielded/Unshielded twisted pair | Position 1 |
10BASE-T LINK STATUS | ||
Setting | J5 | J6 |
10BASE-T hub selected | Pins 2 & 3 closed | Pins 1 & 2 closed |
Pre-10BASE-T hub selected | Pins 1 & 2 closed | Pins 2 & 3 closed |
Note:J5 and J6 only apply when twisted pair cable is being used. | ||
