E960C Network Card Settings and Configuration
UNIDENTIFIED

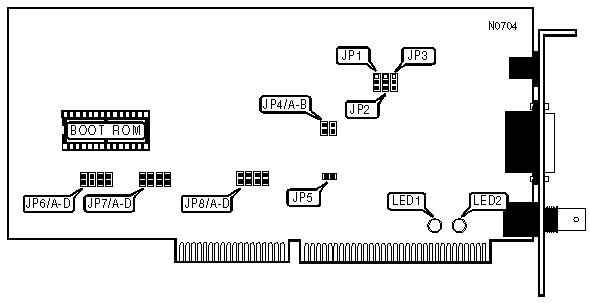

E960C
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Linear Bus, Star |
Wiring Type | AUI transceiver via DB-15 port RG58A/U 50ohm coaxial Unshielded twisted pair |
Boot ROM | Available |
CABLE TYPE | ||||
Type | JP1 | JP2 | JP3 | |
| » | RG58A/U 50ohm coaxial | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 2 & 3 closed |
AUI transceiver via DB-15 port | Pins 1 & 2 closed | Pins 2 & 3 closed | Pins 1 & 2 closed | |
Unshielded twisted pair | Pins 2 & 3 closed | Pins 1 & 2 closed | Pins 1 & 2 closed | |
DMA CONFIGURATION | |||||
DRQ | JP6/A | JP6/B | JP6/C | JP6/D | |
| » | 6 | Open | Closed | Open | Open |
3 | Open | Open | Open | Closed | |
5 | Open | Open | Closed | Open | |
7 | Closed | Open | Open | Open | |
DMA CONFIGURATION (CONTINUED) | |||||
DACK | JP7/A | JP7/B | JP7/C | JP7/D | |
| » | 5 | Open | Open | Closed | Open |
3 | Open | Open | Closed | Open | |
6 | Open | Closed | Open | Open | |
7 | Closed | Open | Open | Open | |
INTERRUPT SELECT | |||||
IRQ | JP8/A | JP8/B | JP8/C | JP8/D | |
| » | IRQ3 | Open | Open | Closed | Open |
IRQ2 | Closed | Open | Open | Open | |
IRQ4 | Open | Closed | Open | Open | |
IRQ5 | Closed | Open | Open | Open | |
I/O ADDRESS CONFIGURATION | |||
Address | JP4/A | JP4/B | |
| » | 300h | Closed | Closed |
Note:While this address is not the only possible configuration, it is the only one specified by manufacturer’s technical documentation. | |||
ROM CONFIGURATION | ||
Setting | JP5 | |
| » | Disabled | Closed |
Enabled | Open | |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Unknown | On | Network connection is good |
LED1 | Unknown | Off | Network connection is broken |
LED2 | Unknown | On | Data is being transmitted/received |
LED2 | Unknown | Off | Data is not being transmitted/received |
