FD100 TP Network Card Settings and Configuration
SVEC COMPUTER COMPANY
FD100 TP
NIC Type | Ethernet |
Transfer Rate | 10/100Mbps |
Data Bus | PCI |
Topology | Star |
Wiring Type | Unshielded twisted pair |
Boot ROM | Not available |

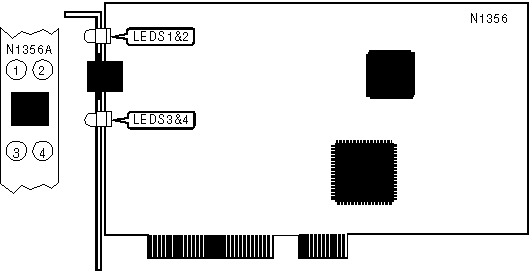

DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | Power is on |
LED1 | Green | Off | Power is off |
LED2 | Yellow | On | 100Mbps operation |
LED2 | Yellow | Off | 10Mbps operation |
LED3 | Green | On | Network connection is good |
LED3 | Green | Off | Network connection is broken |
LED4 | Green | On | Data is being transmitted/received |
LED4 | Green | Off | Data is not being transmitted/received |
