EP-201TX Network Card Settings and Configuration

Card Type	Ethernet Transceiver
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	100Mbps, 10Mbps
Topology	Star
Wiring Type	RJ-45 Unshielded twisted pair
Data Bus	External

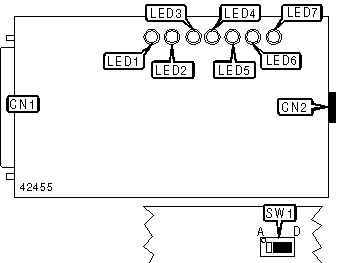

CONNECTIONS
Function	Label	Function	Label
MII connector	CN1	RJ-45 connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Repeater mode enabled	SW1/A	On
	DTE mode enabled	SW1/A	Off
»	Half duplex mode enabled	SW1/B	Off
	Full duplex mode enabled	SW1/B	On
»	Isolation mode disabled	SW1/C	Off
	Isolation mode enabled	SW1/C	On

NETWORK SPEED SELECTION
Speed		SW1/D
»	100Mbps	On
	10Mbps	Off

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	100Mbps selected
LED1	Green	Off	10Mbps selected
LED2	Green	On	Full duplex mode enabled
LED2	Green	Off	Half duplex mode enabled
LED3	Red	On	Collision detected on network
LED3	Red	Off	No collision detected on network
LED4	Green	On	Data is being received
LED4	Green	Off	Data is not being received
LED5	Green	On	Data is being transmitted
LED5	Green	Off	Data is not being transmitted
LED6	Green	On	Network connection is good
LED6	Green	Off	Network connection is broken
LED7	Green	On	Transceiver is receiving power
LED7	Green	Off	Transceiver is not receiving power
