LAN-32PCIR Network Card Settings and Configuration







SUPERTECH COMPUTER CO., LTD.

LAN-32PCIR

Card Type

Network Interface Card

NIC Type

Ethernet

Boot ROM

Available

Network Transfer Rate

20Mbps/10Mbps

Topology

Linear Bus, Star, Peer-Peer

Wiring Type

Unshielded twisted pair

RG-58A/U 50ohm coaxial

Data Bus

32-bit PCI

CONNECTIONS

Function

Label

Function

Label

RJ-45 UTP connector

CN1

RG-58A/U connector

CN2

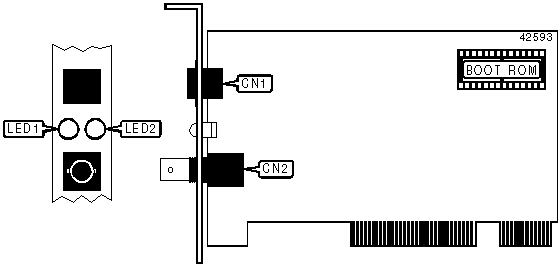

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Network connection is good

LED1

Green

Off

Network connection is not good

LED2

Red

On or flashing

Data is being received

LED2

Red

Off

Data is not being received
