EP100TX Network Card Settings and Configuration







SURECOM TECHNOLOGY CORPORATION

EP100TX

NIC Type

Ethernet

Network Transfer Rate

10/100Mbps

Data Bus

32-bit PCI

Topology

Star

Wiring Type

Unshielded twisted pair

Boot ROM

Not available

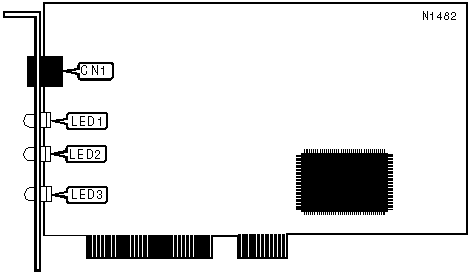

CONNECTIONS

Function

Label

Unshielded twisted pair port

CN1

DIAGNOSTIC LED(S)

LED

Status

Condition

LED1

On

Network connection is good at 10Mbps

LED1

Off

Network connection is broken at 10Mbps

LED2

On

Network connection is good at 100Mbps

LED2

Off

Network connection is broken at 100Mbps

LED3

On

Data is being transmitted/received

LED3

Off

Data is not being transmitted/received
