LAN-2UCT+, LAN-2UCT+(R) Network Card Settings and Configuration







SUPERTECH COMPUTER CO., LTD.

LAN-2UCT+, LAN-2UCT+(R)

Card Type

Network Interface Card

NIC Type

Ethernet

Boot ROM

Available

Network Transfer Rate

10Mbps

Topology

Linear Bus, Star, Peer-Peer

Wiring Type

Unshielded twisted pair

RG-58A/U 50ohm coaxial

Data Bus

16-bit ISA

CONNECTIONS

Function

Label

Function

Label

RJ-45 UTP connector

CN1

RG-58A/U connector

CN2

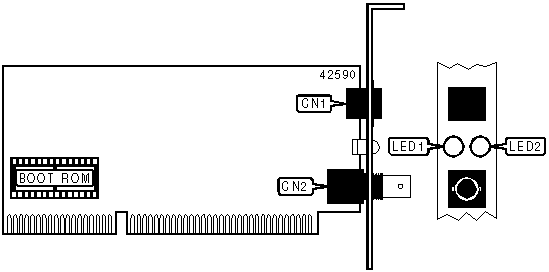

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Unidentified

On

UTP link is good

LED1

Unidentified

Off

No UTP link is broken

LED2

Unidentified

On

Data is being received

LED2

Unidentified

Off

Data is not being received
