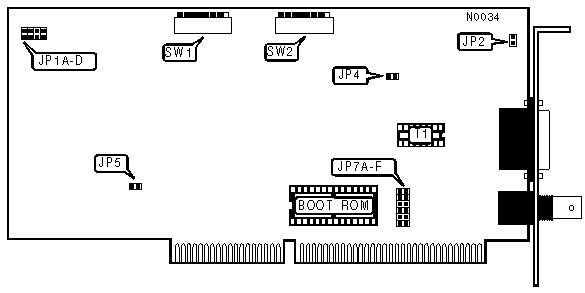

ETHERNET 3016 Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus
Wiring Type	RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

I/O BASE ADDRESS
Address		SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6	SW1/7
»	300h	On	On	On	Off	Off	On	On
	200h	On	On	On	On	Off	On	On
	220h	Off	On	On	On	Off	On	On
	240h	On	Off	On	On	Off	On	On
	260h	Off	Off	On	On	Off	On	On
	280h	On	On	Off	On	Off	On	On
	2A0h	Off	On	Off	On	Off	On	On
	2C0h	On	Off	Off	On	Off	On	On
	2E0h	Off	Off	Off	On	Off	On	On
	320h	Off	On	On	Off	Off	On	On
	340h	On	Off	On	Off	Off	On	On
	360h	Off	Off	On	Off	Off	On	On
	380h	On	On	Off	Off	Off	On	On
	3A0h	Off	On	Off	Off	Off	On	On
	3C0h	On	Off	Off	Off	Off	On	On
	3E0h	Off	Off	Off	Off	Off	On	On

BOOT ROM
Setting		SW1/8
»	Disabled	Off
	Enabled	On

BOOT ROM ADDRESS
Address		SW2/1	SW2/2	SW2/3	SW2/4	SW2/5	SW2/6
»	D0000h	On	On	Off	On	Off	Off
	C0000h	On	On	On	On	Off	Off
	C4000h	Off	On	On	On	Off	Off
	C8000h	On	Off	On	On	Off	Off
	CC000h	Off	Off	On	On	Off	Off
	D4000h	Off	On	Off	On	Off	Off
	D8000h	On	Off	Off	On	Off	Off
	DC000h	Off	Off	Off	On	Off	Off
	E0000h	On	On	On	Off	Off	Off
	E4000h	Off	On	On	Off	Off	Off
	E8000h	On	Off	On	Off	Off	Off
	EC000h	Off	Off	On	Off	Off	Off

DATA BUS SIZE
Size	JP1A	JP1B	JP1C	JP1D	JP5	SW2/7	SW2/8
16-bit	Open	Open	Closed	Closed	Closed	Off	On
8-bit	Closed	Closed	Open	Open	Open	On	On

CABLE TYPE
Type		JP2	JP4	Pulse Transformer T1
»	RG-58A/U 50ohm coaxial	Open	Open	installed
	AUI transceiver via DB-15 port	Open	Closed	not installed

INTERRUPT REQUEST
IRQ		JP7A	JP7B	JP7C	JP7D	JP7E	JP7F
»	3	Closed	Open	Open	Open	Open	Open
	4	Open	Closed	Open	Open	Open	Open
	5	Open	Open	Closed	Open	Open	Open
	7	Open	Open	Open	Closed	Open	Open
	9	Open	Open	Open	Open	Closed	Open
	10	Open	Open	Open	Open	Open	Closed
