ETHERPOWER SMC8432BT Network Card Settings and Configuration

STANDARD MICROSYSTEMS CORPORATION

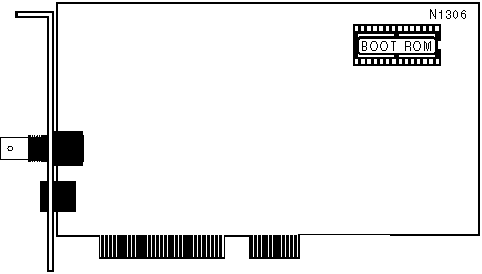

ETHERPOWER SMC8432BT

NIC Type
Ethernet
Transfer Rate
10Mbps
Data Bus
32-bit PCI
Topology
Linear Bus/Star
Wiring Type
Unshielded twisted pair
RG-58A/U 50ohm coaxial
Boot ROM
Available

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Green
On
10Base-T network connection is good
LED1
Green
Off
10Base-T network connection is broken
LED2
Amber
Blinking
Data is being transmitted/received
LED2
Amber
Off
Data is not being transmitted/received
Note: LED1 and LED2 are integrated within the RJ-45 connector.
