ETHERNET SMC3016TP/MC Network Card Settings and Configuration
STANDARD MICROSYSTEMS CORPORATION
ETHERNET SMC3016TP/MC
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit MCA |
Topology | Star |
Wiring Type | Unshielded twisted pair AUI transceiver via DB-15 port |
Boot ROM | Available |

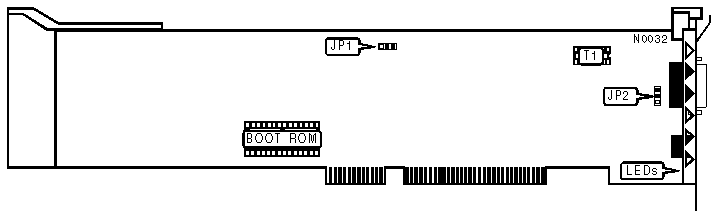

CABLE TYPE | ||||
Type | JP1 | JP2 | Pulse Transformer T1 | |
| » | Unshielded twisted pair | Open | Open | installed |
AUI transceiver via DB-15 port | Closed | Open | not installed | |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | Twisted pair network connection is good |
LED1 | Green | Off | Twisted pair network connection is broken |
LED2 | Green | On | Data is being transmitted |
LED2 | Green | Off | Data is not being transmitted |
LED3 | Yellow | On | Collision detected on network |
LED3 | Yellow | Off | Normal operation |
LED4 | Green | On | Data is being received |
LED4 | Green | Off | Data is not being received |
