NETWORTH, INC.
UTP32B
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit EISA |
Topology | Linear Bus |
Wiring Type | Unshielded twisted pair AUI transceiver via DB-15 |
Boot ROM | Available |

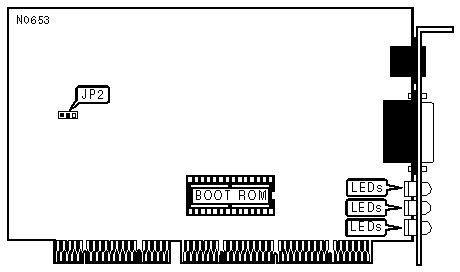

COMPATIBILITY CONFIGURATION | ||
Mode | JP2 | |
» | Compatibility mode | Pins 1 & 2 closed |
Normal operation | Pins 2 & 3 closed | |
Note:Compatibility mode should be enabled when the card is installed in main board slot 0, or if the system the card is installed in utilizes an earlier model Intel processor. |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | Data is being received |
LED1 | Green | Off | Data is not being received |
LED2 | Red | On | Twisted pair reversed polarity, card compensating |
LED2 | Red | Off | Twisted pair proper polarity/10BaseT not in use |
LED3 | Green | On | Data is being transmitted |
LED3 | Green | Off | Data is not being transmitted |
LED4 | Yellow | On | 10BaseT port in use |
LED4 | Yellow | Off | 10BaseT port not in use |
LED5 | Green | On | Link integrity exists |
LED5 | Green | Off | Link integrity broken |
LED6 | Yellow | On | Collision detected in network |
LED6 | Yellow | Off | No collisions detected in network |
Note:LED5 is only functional when link integrity is enabled |
