UTP32A/UBUTP32A Network Card Settings and Configuration
NETWORTH, INC.
UTP32A/UBUTP32A
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 8/16-bit ISA |
Topology | Linear Bus |
Wiring Type | Unshielded twisted pair
|
Boot ROM | Available |
NIC EPROM RESET | ||
Function | W1 | |
| Compatibility mode enabled | Pins 1 & 2 closed | |
| » | Enhanced mode enabled | Pins 2 & 3 closed |
Note:Compatibility mode should be enabled when the NIC is installed in main board slot 0, or if system NIC is installed in utilizes an earlier model Intel processor. | ||

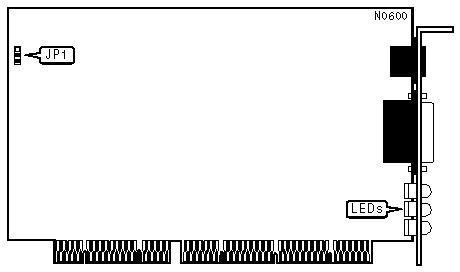

DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | data is being received |
LED1 | Green | Off | data is not being received |
LED2 | Red | On | Twisted pair reversed polarity, card compensating |
LED2 | Red | Off | Twisted pair proper polarity/10BaseT not in use |
LED3 | Green | On | data is being transmitted |
LED3 | Green | Off | data is not being transmitted |
LED4 | Yellow | On | 10BaseT port in use |
LED4 | Yellow | Off | 10BaseT port not in use |
LED5 | Green | On | Link integrity exists |
LED5 | Green | Off | Link integrity broken |
LED6 | Yellow | On | Network collision detected |
LED6 | Yellow | Off | Normal operation |
Note:LED5 is only functional when link integrity is enabled | |||
