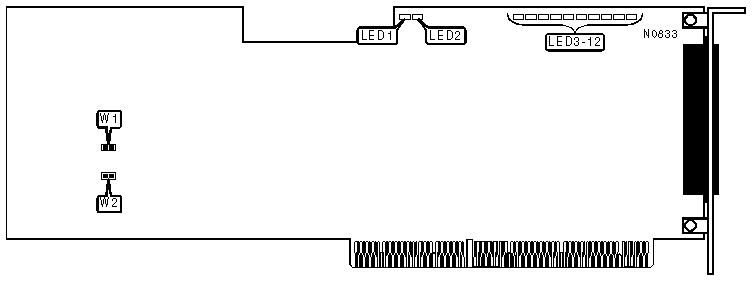

UTP532 Network Card Settings and Configuration

NIC Type

Ethernet

Transfer Rate

10Mbps x 5

Data Bus

32-bit EISA

Topology

Star

Wiring Type

Unshielded twisted pair

Boot ROM

Not available

BURST MODE CONFIGURATION

Mode

W1

»

Burst mode enabled

Closed

Burst mode disabled

Open

SLAVE TIMER CONFIGURATION

Mode

W2

»

Slave timer disabled

Closed

Slave timer enabled

Open

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

Off

DMA channel 0 not in use

LED1

Green

On

DMA channel 0 not in use

LED2

Green

Off

DMA channel 1 not in use

LED2

Green

On

DMA channel 1 not in use

LED3

Green

Off

Port 1 link status OK

LED3

Green

On

Port 1 link broken

LED4

Yellow

Off

Port 1 collision not detected

LED4

Yellow

On

Port 1 collision detected

LED5

Green

Off

Port 2 link status OK

LED5

Green

On

Port 2 link broken

LED6

Yellow

Off

Port 2 collision not detected

LED6

Yellow

On

Port 2 collision detected

LED7

Green

Off

Port 3 link status OK

LED7

Green

On

Port 3 link broken

LED8

Yellow

Off

Port 3 collision not detected

LED8

Yellow

On

Port 3 collision detected

LED9

Green

Off

Port 4 link status OK

LED9

Green

On

Port 4 link broken

LED10

Yellow

Off

Port 4 collision not detected

LED10

Yellow

On

Port 4 collision detected

LED11

Green

Off

Port 5 link status OK

LED11

Green

On

Port 5 link broken

LED12

Yellow

Off

Port 5 collision not detected

LED12

Yellow

On

Port 5 collision detected
