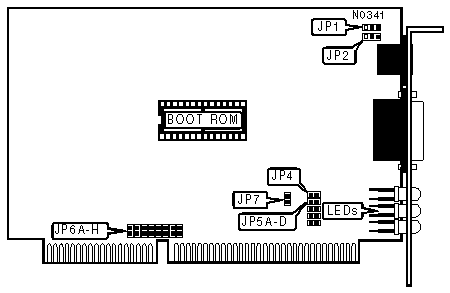

SERIES 4000ETHERNEXT 16-BIT (PN UTP16A) Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Star
Wiring Type	Unshielded Twisted Pair
Boot ROM	Available

CABLE TYPE
Type		JP1	JP2
»	Unshielded Twisted Pair (RJ-45 jack)	Pins 1 & 2 Closed	Pins 1 & 2 Closed
	AUI transceiver via DB-15 port	Pins 2 & 3 Closed	Pins 2 & 3 Closed
Note: When set to AUI transceiver via DB-15 port, the link test is disabled.

I/O BASE ADDRESS
Address		JP5C	JP5D
»	300h	Closed	Closed
	320h	Open	Closed
	340h	Closed	Open
	360h	Open	Open

BASE MEMORY ADDRESS
Address		JP5A	JP5B
»	C0000h	Closed	Closed
	C8000h	Open	Closed
	D0000h	Closed	Open
	D8000h	Open	Open

I/O TIMING COMPATIBILITY
Condition		JP7	JP4
»	Normal	Closed	Closed
	Alternate 1	Open	Closed
	Alternate 2	Open	Open
Note: Jumpers JP7 & JP4 are configured independently of one another. If timing problems occur, you should first change JP7. If timing problems persist, you should then change JP4.

INTERRUPT REQUEST
IRQ		JP6A	JP6B	JP6C	JP6D	JP6E	JP6F	JP6G	JP6H
	2/9	Open	Open	Open	Open	Open	Open	Open	Closed
»	3	Open	Open	Open	Open	Open	Open	Closed	Open
	4	Open	Open	Open	Open	Open	Closed	Open	Open
	5	Open	Open	Open	Open	Closed	Open	Open	Open
	10	Open	Open	Open	Closed	Open	Open	Open	Open
	11	Open	Open	Closed	Open	Open	Open	Open	Open
	12	Open	Closed	Open	Open	Open	Open	Open	Open
	15	Closed	Open	Open	Open	Open	Open	Open	Open

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
1	Green	On	Data is being received
1	Green	Off	Data is not being received
2	Red	On	Link polarity is reversed
2	Red	Off	Link polarity is correct
3	Green	On	Data is being transmitted
3	Green	Off	Data is not being transmitted
4	Yellow	On	AUI transceiver via DB-15 port is active
4	Yellow	Off	AUI transceiver via DB-15 port is not active
5	Green	On	Network connection is good (Twisted Pair only)
5	Green	Off	Network connection not found (Twisted Pair only)
6	Yellow	On	Collision is detected on network
6	Yellow	Off	Network is free of collisions
