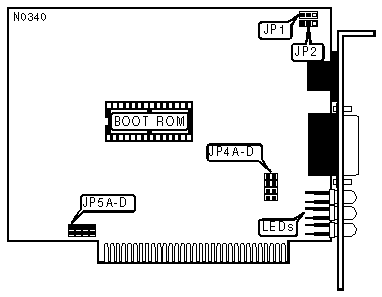

SERIES 4000ETHERNEXT 8-BIT (PN UTP8A) Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8-bit ISA
Topology	Star
Wiring Type	Unshielded twisted pair AUI transceiver via DB-15 port
Boot ROM	Not available

CABLE TYPE
Type		JP1	JP2
»	Unshielded twisted pair	Pins 1 & 2 Closed	Pins 1 & 2 Closed
	AUI transceiver via DB-15 port	Pins 2 & 3 Closed	Pins 2 & 3 Closed
Note: When set to AUI transceiver via DB-15 port, the link test is disabled.

BASE MEMORY ADDRESS
Address		JP4A	JP4B
»	C0000h	Closed	Closed
	C8000h	Open	Closed
	D0000h	Closed	Open
	D8000h	Open	Open

I/O BASE ADDRESS
Address		JP4C	JP4D
»	300h	Closed	Closed
	320h	Open	Closed
	340h	Closed	Open
	360h	Open	Open

INTERRUPT REQUEST
IRQ		JP5A	JP5B	JP5C	JP5D
	2	Open	Open	Open	Closed
»	3	Open	Open	Closed	Open
	4	Open	Closed	Open	Open
	5	Closed	Open	Open	Open

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	Blinking	Data is being transmitted
LED1	Green	Off	Data is not being transmitted
LED2	Green	Blinking	Data is being received
LED2	Green	Off	Data is not being received
LED3	Green	On	Network connection is good
LED3	Green	Off	Network connection is broken
LED4	Yellow	Blinking	Collision is detected on network
LED4	Yellow	Off	No collisions detected on network
LED5	Red	On	Receive polarity reversed
LED5	Red	Off	Receive polarity correct
LED6	Green	On	AUI transceiver via DB-15 selected
LED6	Green	Off	Unshielded twisted pair selected
