ISA HUB PHYSICAL MEDIA EXTENDER Network Card Settings and Configuration







NETWORTH, INC.

ISA HUB PHYSICAL MEDIA EXTENDER

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

8-bit ISA

Topology

Linear Bus/Star

Wiring Type

AUI Transceiver via DB-15 port

RG-58A/U 50ohm coaxial

Boot ROM

Not available

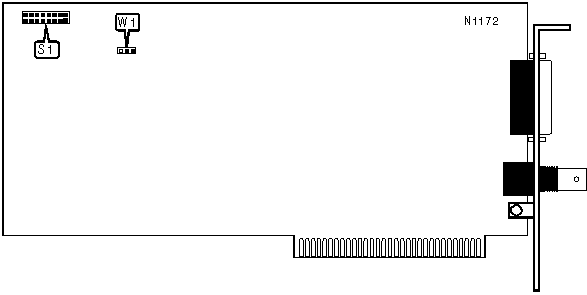

CONNECTIONS

Purpose

Location

ISA HubCard and HubExpander cable connector

S1

CABLE TYPE SELECTION

Cable Type

W1

AUI Transceiver via DB-15 port

pins 1 & 2 closed

RG-58A/U 50ohm coaxial

pins 2 & 3 closed
