SHARK NS-100/4/C Network Card Settings and Configuration

Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10/100Mbps
Topology	Star
Wiring Type	RJ-45 Unshielded twisted pair
Data Bus	32-bit PCI

CONNECTIONS
Function	Label	Function	Label
RJ-45 UTP connector port 1	CN1	RJ-45 UTP connector port 3	CN3
RJ-45 UTP connector port 2	CN2	RJ-45 UTP connector port 4	CN4

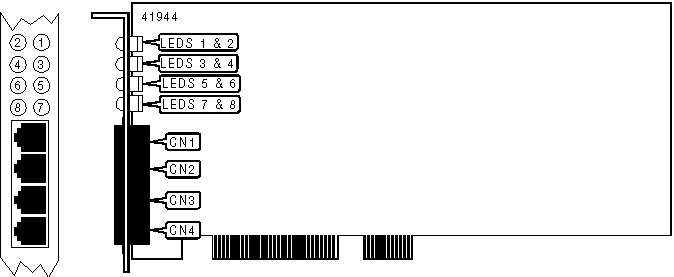

DIAGNOSTIC LED(S)
LED	Color	Status	Port	Condition
LED1	Red	On	1	Collision detected on network
LED1	Red	Off	1	No collision detected on network
LED2	Green	On	1	UTP link is good
LED2	Green	Off	1	UTP link is broken
LED2	Green	Blinking	1	Data is being transmitted/received
LED3	Red	On	2	Collision detected on network
LED3	Red	Off	2	No collision detected on network
LED4	Green	On	2	UTP link is good
LED4	Green	Off	2	UTP link is broken
LED4	Green	Blinking	2	Data is being transmitted/received
LED5	Red	On	3	Collision detected on network
LED5	Red	Off	3	No collision detected on network
LED6	Green	On	3	UTP link is good
LED6	Green	Off	3	UTP link is broken
LED6	Green	Blinking	3	Data is being transmitted/received
LED7	Red	On	4	Collision detected on network
LED7	Red	Off	4	No collision detected on network
LED8	Green	On	4	UTP link is good
LED8	Green	Off	4	UTP link is broken
LED8	Green	Blinking	4	Data is being transmitted/received
