FASTNIC 10/100 Network Card Settings and Configuration
MATROX GRAPHICS, INC.
FASTNIC 10/100
Card Type | Network Interface Card |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Unidentified |
Network Transfer Rate | 10/100Mbps |
Topology | Star |
Wiring Type | RJ-45 Unshielded twisted pair |
Data Bus | 32-bit PCI |

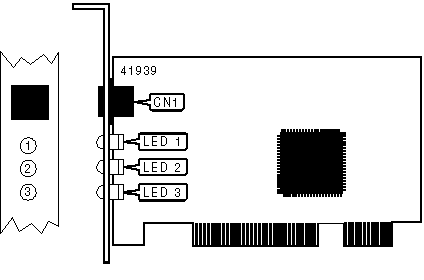

CONNECTIONS | |
Function | Label |
RJ-45 connector | CN1 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Yellow | Blinking | Data is being received |
LED1 | Yellow | Off | Data is not being received |
LED2 | Green | On | Network connection is good |
LED2 | Green | Off | Network connection is broken |
LED3 | Amber | On | Network connection is 100Mbps |
LED3 | Amber | Off | Network connection is 10Mbps |
