LCS-8634MI/8634MI-T REV. D1 Network Card Settings and Configuration
LONGSHINE MICROSYSTEM, INC.

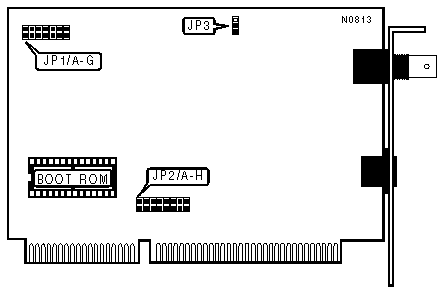

LCS-8634MI/8634MI-T REV. D1
NIC Type: | Ethernet |
Transfer Rate: | 10Mbps |
Data Bus: | 16-bit ISA |
Topology: | Linear Bus Star |
Wiring Type | Unshielded twisted pair |
Boot ROM | Available |
I/O ADDRESS | |||
Address | JP1/Jumper A | JP1/Jumper B | |
| » | 300h | Open | Open |
320h | Closed | Open | |
340h | Open | Closed | |
360h | Closed | Closed | |
PC COMPATIBILITY | ||
Setting | JP1/Jumper C | |
| » | Standard | Open |
Non-standard | Closed | |
Note:Set JP1/jumper C to the closed position if timing compatibility problems are encountered. | ||
BOOT ROM | ||
Setting | JP1/Jumper D | |
| » | Disabled | Open |
Enabled | Closed | |
BOOT ROM ADDRESS | ||||
Address | JP1/Jumper E | JP1/Jumper F | JP1/Jumper G | |
| » | C8000h | Open | Closed | Open |
C0000h | Open | Open | Open | |
C4000h | Closed | Open | Open | |
CC000h | Closed | Closed | Open | |
D0000h | Open | Open | Closed | |
D4000h | Closed | Open | Closed | |
D8000h | Open | Closed | Closed | |
DC000h | Closed | Closed | Closed | |
INTERRUPT SELECT - JP2 | |||||||||
IRQ | A | B | C | D | E | F | G | H | |
| » | IRQ3 | Open | Open | Open | Open | Open | Open | Closed | Open |
IRQ2 | Open | Open | Open | Open | Open | Open | Open | Closed | |
IRQ4 | Open | Open | Open | Open | Open | Closed | Open | Open | |
IRQ5 | Open | Open | Open | Open | Closed | Open | Open | Open | |
IRQ10 | Open | Open | Open | Closed | Open | Open | Open | Open | |
IRQ11 | Open | Open | Closed | Open | Open | Open | Open | Open | |
IRQ12 | Open | Closed | Open | Open | Open | Open | Open | Open | |
IRQ15 | Closed | Open | Open | Open | Open | Open | Open | Open | |
CABLE TYPE | ||
Type | JP3 | |
| » | RG58A/U 50ohm coaxial | Pins 1 & 2 closed |
Unshielded twisted pair | Pins 2 & 3 closed | |
MISCELLANEOUS TECHNICAL NOTES |
The LCS-8634MI uses the RG58A/U 50ohm cable. The LCS-8634MI-T uses the Unshielded Twisted Pair cable. |
