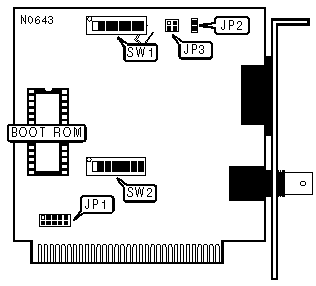

LCS-8830 (REVISION A1) Network Card Settings and Configuration

LONGSHINE MICROSYSTEM, INC.

LCS-8830 (REVISION A1)

NIC Type
ARCnet
Transfer Rate
2.5Mbps
Data Bus
8-bit ISA
Topology
Linear/Star
Wiring Type
RG62A/U 93ohm coaxial
Unshielded twisted pair
Boot ROM
Available

BASE I/O ADDRESS
Address range
SW2/switch 6
SW2/switch 7
SW2/switch 8
260h - 26Fh
Closed
Closed
Closed
290h - 29Fh
Open
Closed
Closed
2E0h - 2EFh
Closed
Open
Closed
2F0h - 2FFh
Open
Open
Closed
300h - 30Fh
Closed
Closed
Open
350h - 35Fh
Open
Closed
Open
380h - 38Fh
Closed
Open
Open
3E0h - 3EFh
Open
Open
Open

BOOT ROM
Setting
JP2
»
Disabled
Open

Enabled
Closed

BASE MEMORY ADDRESS
RAM Address range
PROM address range
SW2/1
SW2/2
SW2/3
SW2/4
SW2/5
C:0000h - C:07FFh
C:2000h - C:3FFFh
On
On
On
On
On
C:0800h - C:0FFFh
C:2000h - C:3FFFh
Off
On
On
On
On
C:1000h - C:17FFh
C:2000h - C:3FFFh
On
Off
On
On
On
C:1800h - C:1FFFh
C:2000h - C:3FFFh
Off
Off
On
On
On
C:4000h - C:47FFh
C:6000h - C:7FFFh
On
On
Off
On
On
C:4800h - C:4FFFh
C:6000h - C:7FFFh
Off
On
Off
On
On
C:5000h - C:57FFh
C:6000h - C:7FFFh
On
Off
Off
On
On
C:5800h - C:5FFFh
C:6000h - C:7FFFh
Off
Off
Off
On
On
C:C000h - C:C7FFh
C:E000h - C:FFFFh
On
On
On
Off
On
C:C800h - C:CFFFh
C:E000h - C:FFFFh
Off
On
On
Off
On
C:D000h - C:D7FFh
C:E000h - C:FFFFh
On
Off
On
Off
On
C:0000h - C:DFFFh
C:E000h - C:FFFFh
Off
Off
On
Off
On
D: 0000h - D:07FFh
D:2000h - D:3FFFh
On
On
Off
Off
On
D: 0800h - D:0FFFh
D:2000h - D:3FFFh
Off
On
Off
Off
On
D:1000h - D:17FFh
D:2000h - D:3FFFh
On
Off
Off
Off
On
D:1800h - D:1FFFh
D:2000h - D:3FFFh
Off
Off
Off
Off
On
D:4000h - D:47FFh
D:6000h - D:7FFFh
On
On
On
On
Off
D:4800h - D:4FFFh
D:6000h - D:7FFFh
Off
On
On
On
Off
D:5000h - D:57FFh
D:6000h - D:7FFFh
On
Off
On
On
Off
D:5800h - D:5FFFh
D:6000h - D:7FFFh
On
On
Off
Off
On
D:8000h - D:87FFh
D:A000h - D:BFFFh
Off
Off
On
Off
On
D:8800h - D:8FFFh
D:A000h - D:BFFFh
On
Off
On
Off
On
D:9000h - D:97FFh
D:A000h - D:BFFFh
Off
On
On
Off
On
D:9800h - D:9FFFh
D:A000h - D:BFFFh
On
On
On
Off
On
D:C000h - D:C7FFh
D:E000h - D:FFFFh
Off
Off
Off
On
On
D:C800h - D:CFFFh
D:E000h - D:FFFFh
On
Off
Off
On
On
D:D000h - D:D7FFh
D:E000h - D:FFFFh
Off
On
Off
On
On
D:D800h - D:DFFFh
D:E000h - D:FFFFh
On
On
Off
On
On
E:0000h - E:07FFh
E:2000h - E:3FFFh
Off
Off
On
On
On
E:0800h - E:0FFFh
E:2000h - E:3FFFh
On
Off
On
On
On
E:1000h - E:17FFh
E:2000h - E:3FFFh
Off
On
On
On
On
E:1800h - E:1FFFh
E:2000h - E:3FFFh
On
On
On
On
On

INTERRUPT REQUEST
IRQ
JP1/1
JP1/2
JP1/3
JP1/4
JP1/5
IRQ2
Closed
Open
Open
Open
Open
IRQ3
Open
Closed
Open
Open
Open
IRQ4
Open
Open
Closed
Open
Open
IRQ5
Open
Open
Open
Closed
Open
IRQ7
Open
Open
Open
Open
Closed

RESPONSE AND RECONFIGURATION SETTINGS
Response Time
Idle Time
Reconfiguration Time
JP3
78 m
86 m
840ms
Open
285 m
316 m
1680ms
Pins 1 & 2 closed
563 m
624 m
1680ms
Pins 3 & 4 closed
1130 m
1237 m
1680ms
Closed

NODE ADDRESS
Node
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
SW1/7
SW1/8
1
On
On
On
On
On
On
On
Off
2
On
On
On
On
On
On
Off
On
3
On
On
On
On
On
On
Off
Off
4
On
On
On
On
On
Off
On
On
251
Off
Off
Off
Off
Off
On
Off
Off
252
Off
Off
Off
Off
Off
Off
On
On
253
Off
Off
Off
Off
Off
Off
On
Off
254
Off
Off
Off
Off
Off
Off
Off
On
255
Off
Off
Off
Off
Off
Off
Off
Off
Note:Node address 0 is used for messaging between nodes and must not be used.
A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch 8 is the Least Significant Bit and switch 1 is the Most Significant Bit. The switches have the following decimal values: switch 1=128, 2=64, 3=32, 4=16, 5=8, 6=4, 7=2, 8=1. Turn Off the switches and add the values of the Off switches to obtain the correct node address. (On=0, Off=1)
