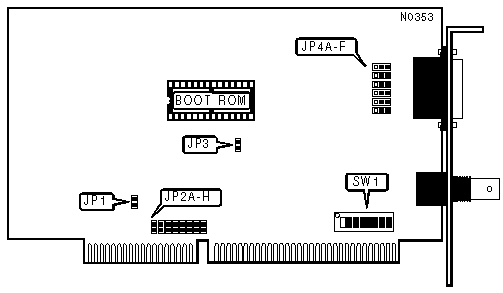

LCS-8634 (REV. C) Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus
Wiring Type	RG58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

COMPATABILITY MODE
Setting		JP1
»	Disabled	Open
	Enabled	Closed
Note: If your system does not work with this card, set this option to enabled (closed).

INTERUPT REQUEST
IRQ		JP2A	JP2B	JP2C	JP2D	JP2E	JP2F	JP2G	JP2H
»	3	Closed	Open	Open	Open	Open	Open	Open	Open
	4	Open	Closed	Open	Open	Open	Open	Open	Open
	5	Open	Open	Closed	Open	Open	Open	Open	Open
	9	Open	Open	Open	Closed	Open	Open	Open	Open
	10	Open	Open	Open	Open	Closed	Open	Open	Open
	11	Open	Open	Open	Open	Open	Closed	Open	Open
	12	Open	Open	Open	Open	Open	Open	Closed	Open
	15	Open	Open	Open	Open	Open	Open	Open	Closed

BOOT ROM
Setting		JP3
»	Disabled	Open
	Enabled	Closed

CABLE TYPE
Type		JP4A - JP4F
»	RG58A/U 50ohm coaxial	Pins 1 & 2 closed
	AUI transceiver via DB-15 port	Pins 2 & 3 closed

BASE MEMORY ADDRESS
Base Address		SW1/1	SW1/2	SW1/3	SW1/4	SW1/5
»	C800h	On	On	Off	On	On
	CA00h	On	On	Off	On	Off
	CC00h	On	On	Off	Off	On
	CE00h	On	On	Off	Off	Off
	D000h	On	Off	On	On	On
	D200h	On	Off	On	On	Off
	D400h	On	Off	On	Off	On
	D600h	On	Off	On	Off	Off
	D800h	On	Off	Off	On	On
	DA00h	On	Off	Off	On	Off
	DC00h	On	Off	Off	Off	On
	DE00h	On	Off	Off	Off	Off

I/O BASE ADDRESS
Address		SW1/6	SW1/7	SW1/8
»	300h	On	On	On
	320h	On	On	Off
	340h	On	Off	On
	360h	On	Off	Off
	380h	Off	On	On
	3A0h	Off	On	Off
	3C0h	Off	Off	On
	3E0h	Off	Off	Off
