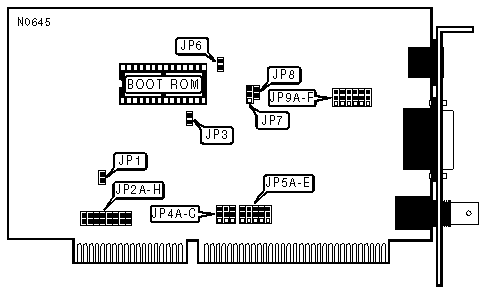

LCS-8634TBA (REV.B1) Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Star
Wiring Type	RG58A/U 50ohm coaxial AUI transceiver via DB-15 port Unshielded twisted pair
Boot ROM	Available

BOOT ROM
Setting		JP3
»	Disabled	Open
	Enabled	Closed

COMPATABILITY MODE
Setting		JP1
»	Disabled	Open
	Enabled	Closed
Note: If your system does not work with this card, set this option to enabled (closed).

CABLE TYPE
Type	JP6	JP8	JP9A-F
Unshielded twisted pair	Open	Closed	Optional
RG58A/U 50ohm coaxial	Closed	Open	Pins 1 & 2 closed
AUI transceiver via DB-15 port	Open	Open	Pins 2 & 3 closed

INTERUPT REQUEST
IRQ		JP2A	JP2B	JP2C	JP2D	JP2E	JP2F	JP2G	JP2H
»	3	Open	Open	Open	Open	Open	Open	Open	Closed
	4	Open	Open	Open	Open	Open	Open	Closed	Open
	5	Open	Open	Open	Open	Open	Closed	Open	Open
	9	Open	Open	Open	Open	Closed	Open	Open	Open
	10	Open	Open	Open	Closed	Open	Open	Open	Open
	11	Open	Open	Closed	Open	Open	Open	Open	Open
	12	Open	Closed	Open	Open	Open	Open	Open	Open
	15	Closed	Open	Open	Open	Open	Open	Open	Open

BASE MEMORY ADDRESS
Base Address		JP5A	JP5B	JP5C	JP5D	JP5E
»	C800h	Pins 1 & 2	Pins 1 & 2	Pins 2 & 3	Pins 1 & 2	Pins 1 & 2
	CA00h	Pins 2 & 3	Pins 1 & 2	Pins 2 & 3	Pins 1 & 2	Pins 1 & 2
	CC00h	Pins 1 & 2	Pins 2 & 3	Pins 2 & 3	Pins 1 & 2	Pins 1 & 2
	CE00h	Pins 2 & 3	Pins 2 & 3	Pins 2 & 3	Pins 1 & 2	Pins 1 & 2
	D000h	Pins 1 & 2	Pins 1 & 2	Pins 1 & 2	Pins 2 & 3	Pins 1 & 2
	D200h	Pins 2 & 3	Pins 1 & 2	Pins 1 & 2	Pins 2 & 3	Pins 1 & 2
	D400h	Pins 1 & 2	Pins 2 & 3	Pins 1 & 2	Pins 2 & 3	Pins 1 & 2
	D600h	Pins 2 & 3	Pins 2 & 3	Pins 1 & 2	Pins 2 & 3	Pins 1 & 2
	D800h	Pins 1 & 2	Pins 1 & 2	Pins 2 & 3	Pins 2 & 3	Pins 1 & 2
	DA00h	Pins 2 & 3	Pins 1 & 2	Pins 2 & 3	Pins 2 & 3	Pins 1 & 2
	DC00h	Pins 1 & 2	Pins 2 & 3	Pins 2 & 3	Pins 2 & 3	Pins 1 & 2
	DE00h	Pins 2 & 3	Pins 2 & 3	Pins 2 & 3	Pins 2 & 3	Pins 1 & 2
Note:Pins designated should be in the closed position.

I/O BASE ADDRESS
Address		JP4A	JP4B	JP4C
»	300h	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
	320h	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
	340h	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
	360h	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
	380h	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
	3A0h	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
	3C0h	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
	3E0h	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed

LINK INTEGRITY TEST
Setting		JP7
»	Enabled	Pins 2 & 3 closed
	Disabled	Pins 1 & 2 closed
