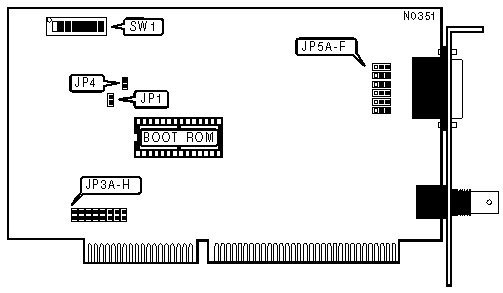

LCS-8634 (REV. B) Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus
Wiring Type	RG58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

COMPATABILITY MODE
Setting		JP1
»	Disabled	Open
	Enabled	Closed
Note:Some systems use non-standard timing. If your system does not work with this card set this option to

INTERUPT REQUEST
IRQ		JP3A	JP3B	JP3C	JP3D	JP3E	JP3F	JP3G	JP3H
»	3	Closed	Open	Open	Open	Open	Open	Open	Open
	4	Open	Closed	Open	Open	Open	Open	Open	Open
	5	Open	Open	Closed	Open	Open	Open	Open	Open
	9	Open	Open	Open	Closed	Open	Open	Open	Open
	10	Open	Open	Open	Open	Closed	Open	Open	Open
	11	Open	Open	Open	Open	Open	Closed	Open	Open
	12	Open	Open	Open	Open	Open	Open	Closed	Open
	15	Open	Open	Open	Open	Open	Open	Open	Closed

BOOT ROM
Setting		JP4
»	Disabled	Open
	Enabled	Closed

CABLE TYPE
Type		JP5A - JP5F
»	RG58A/U 50ohm coaxial	Pins 1 & 2 closed
	AUI transceiver via DB-15 port	Pins 2 & 3 closed

BASE MEMORY ADDRESS
Base Address		SW1/1	SW1/2	SW1/3	SW1/4	SW1/5
»	C800h	On	On	Off	On	On
	CA00h	On	On	Off	On	Off
	CC00h	On	On	Off	Off	On
	CE00h	On	On	Off	Off	Off
	D000h	On	Off	On	On	On
	D200h	On	Off	On	On	Off
	D400h	On	Off	On	Off	On
	D600h	On	Off	On	Off	Off
	D800h	On	Off	Off	On	On
	DA00h	On	Off	Off	On	Off
	DC00h	On	Off	Off	Off	On
	DE00h	On	Off	Off	Off	Off

I/O BASE ADDRESS
Address	SW1/6	SW1/7	SW1/8
300h	On	On	On
320h	On	On	Off
340h	On	Off	On
360h	On	Off	Off
380h	Off	On	On
3A0h	Off	On	Off
3C0h	Off	Off	On
3E0h	Off	Off	Off
