EN2000 PNP/COMBO Network Card Settings and Configuration
LANTECH COMPUTER COMPANY
EN2000 PNP/COMBO
Card Type | Network Interface Card |
NIC Type | Ethernet |
Boot ROM | Available |
Network Transfer Rate | 10Mbps (half-duplex), 20Mbps (full-duplex) |
Topology | Linear Bus, Star |
Wiring Type | Unshielded twisted pair AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial |
Data Bus | 16-bit ISA |

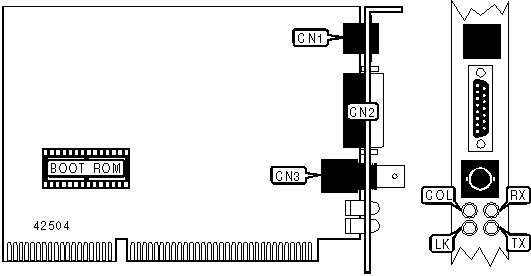

CONNECTIONS | |||
Function | Label | Function | Label |
RJ-45 UTP connector | CN1 | RG-58A/U BNC connector | CN3 |
AUI transceiver via DB-15 | CN2 | ||
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LK | Unidentified | On | UTP link is good |
LK | Unidentified | Off | UTP link is broken |
TX | Unidentified | Blinking | Data is being transmitted |
TX | Unidentified | Off | Data is not being transmitted |
RX | Unidentified | Blinking | Data is being received |
RX | Unidentified | Off | Data is not being received |
COL | Unidentified | Blinking | Collision detected on network |
COL | Unidentified | Off | No collision detected on network |
