EN2000 PNP/CT Network Card Settings and Configuration
LANTECH COMPUTER COMPANY
EN2000 PNP/CT
Card Type | Network Interface Card |
NIC Type | Ethernet |
Boot ROM | Available |
Network Transfer Rate | 10Mbps (half-duplex), 20Mbps (full-duplex) |
Topology | Linear Bus, Star |
Wiring Type | Unshielded twisted pair RG-58A/U 50ohm coaxial |
Data Bus | 16-bit ISA |
CONNECTIONS | |||
Function | Label | Function | Label |

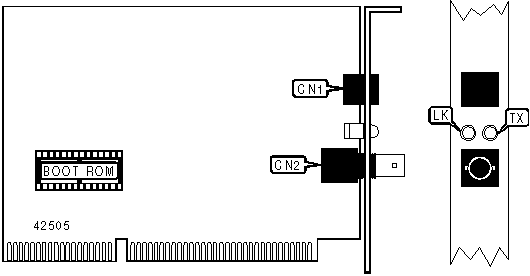

RJ-45 UTP connector | CN1 | RG-58A/U BNC connector | CN2 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LK | Unidentified | On | UTP link is good |
LK | Unidentified | Off | UTP link is broken |
TX | Unidentified | Blinking | Data is being transmitted |
TX | Unidentified | Off | Data is not being transmitted |
