EN2000 PNP/C Network Card Settings and Configuration
LANTECH COMPUTER COMPANY
EN2000 PNP/C
Card Type | Network Interface Card |
NIC Type | Ethernet |
Boot ROM | Available |
Network Transfer Rate | 10Mbps (half-duplex), 20Mbps (full-duplex) |
Topology | Linear Bus |
Wiring Type | RG-58A/U 50ohm coaxial |
Data Bus | 16-bit ISA |
CONNECTIONS | |
Function | Label |

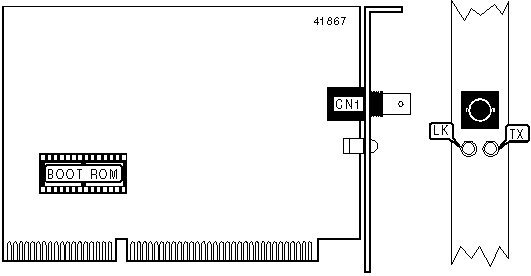

RG-58A/U connector | CN1 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LK | Unidentified | On | UTP link is good |
LK | Unidentified | Off | UTP link is broken |
TX | Unidentified | Blinking | Data is being transmitted |
TX | Unidentified | Off | Data is not being transmitted |
