10/100 BASE-TX ETHERNET ADAPTER Network Card Settings and Configuration
LANTECH COMPUTER COMPANY
10/100 BASE-TX ETHERNET ADAPTER
Card Type | Network Interface Card |
NIC Type | Ethernet |
Maximum Onboard Memory | 128MB DRAM (EDO supported) , Unidentified |
Boot ROM | Available |
Network Transfer Rate | 100Mbps/10Mbps |
Topology | Star |
Wiring Type | Shielded twisted pair Unshielded twisted pair |
Data Bus | 32-bit PCI |
CONNECTIONS | |
Function | Label |
RJ-45 UTP connector | CN1 |

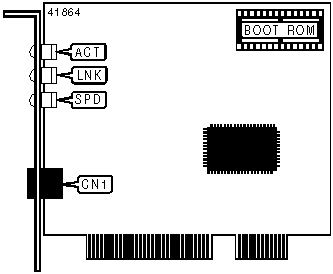

DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
ACT | Yellow | Blinking | Data is being received |
ACT | Yellow | Off | Data is not being received |
LNK | Green | On | UTP link is good |
LNK | Green | Off | UTP link is broken |
SPD | Amber | On | Connected at 100Mbps |
SPD | Amber | Off | Not connected at 100Mbps |
