4321-11 Network Card Settings and Configuration

Card Type	Transceiver
NIC Type	Ethernet
Network Transfer Rate	10Mbps
Topology	Star
Wiring Type	AUI transceiver via DB-15 port, RG-58A/U 50ohm coaxial
Data Bus	External

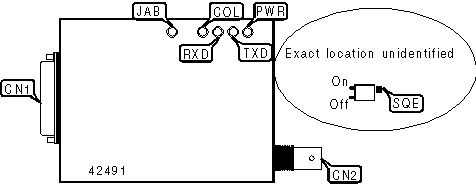

CONNECTIONS
Function	Label	Function	Label
BNC connector	CN1	AUI transceiver via DB-15	CN2

USER CONFIGURABLE SETTINGS
Function	Label	Position
í Signal Quality Error signal disabled	SQE	Off
Signal Quality Error signal disabled	SQE	On

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
PWR	Green	On	Power is being received from the DTE device
PWR	Green	Off	Power is not being received from the DTE device
TXD	Green	Blinking	Data is being transmitted
TXD	Green	Off	Data is not being transmitted
RXD	Green	Blinking	Data is being received
RXD	Green	Off	Data is not being received
COL	Amber	On	Collision detected on network
COL	Amber	Off	No collision detected on network
JAB	Amber	On	A frame >1518 bytes is being transmitted
JAB	Amber	Off	Frames <1518 bytes are being transmitted
