4322-11 Network Card Settings and Configuration
LANCAST
4322-11
Card Type | Transceiver |
NIC Type | Ethernet |
Network Transfer Rate | 10Mbps |
Topology | Star |
Wiring Type | AUI transceiver via DB-15 port, fiber optic cable in, fiber optic cable out |
Data Bus | External |

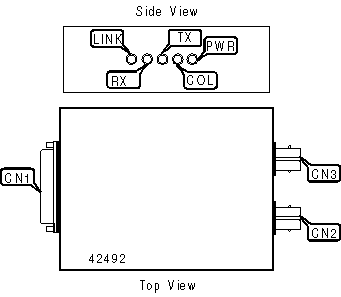

CONNECTIONS | |||
Function | Label | Function | Label |
AUI transceiver via DB-15 | CN1 | Fiber ST connector - transmit | CN3 |
Fiber ST connector - receive | CN2 | ||
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
PWR | Unidentified | On | Power is being received from the DTE device |
PWR | Unidentified | Off | Power is not being received from the DTE device |
COL | Unidentified | On | Collision detected on network |
COL | Unidentified | Off | No collision detected on network |
TX | Unidentified | Blinking | Data is being transmitted |
TX | Unidentified | Off | Data is not being transmitted |
RX | Unidentified | Blinking | Data is being received |
RX | Unidentified | Off | Data is not being received |
LINK | Unidentified | On | UTP link is good |
LINK | Unidentified | Off | UTP link is broken |
