4320-11 Network Card Settings and Configuration

Card Type	Transceiver
NIC Type	Ethernet
Network Transfer Rate	10Mbps
Topology	Star
Wiring Type	Unshielded twisted pair, AUI transceiver via DB-15 port
Data Bus	External

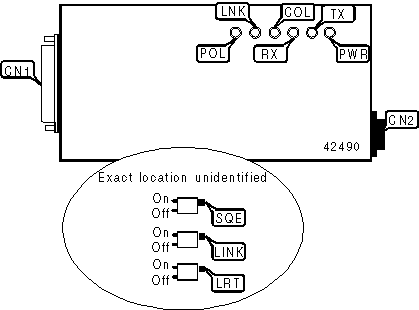

CONNECTIONS
Function	Label	Function	Label
RJ-45 UTP connector	CN1	AUI transceiver via DB-15	CN2

USER CONFIGURABLE SETTINGS
Function	Label	Position
í Device operates on 10Base-T compatible hubs	LINK	On
Device does not operate on 10Base-T compatible hubs	LINK	Off
í Low Receipt Threshold set high	LRT	Off
Low Receipt Threshold set low	LRT	On
í Signal Quality Error signal disabled	SQE	Off
Signal Quality Error signal enabled	SQE	On

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
PWR	Unidentified	On	Power is being received from the DTE device
PWR	Unidentified	Off	Power is not being received from the DTE device
TX	Unidentified	Blinking	Data is being transmitted
TX	Unidentified	Off	Data is not being transmitted
RX	Unidentified	Blinking	Data is being received
RX	Unidentified	Off	Data is not being received
COL	Unidentified	On	Collision detected on network
COL	Unidentified	Off	No collision detected on network
LINK	Unidentified	On	UTP link is good
LINK	Unidentified	Off	UTP link is broken
POL	Unidentified	On	Polarity is good
POL	Unidentified	Off	Polarity is reversed
