LE1356C Network Card Settings and Configuration

Card Type	Ethernet
Data Bus	16-bit ISA
Maximum network Rate	10Mbps
Topology	Star
Wiring Type	Unshielded twisted pair
Boot ROM	Available

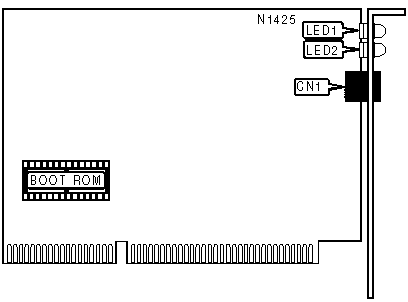

CONNECTIONS
Function	Label
Unshielded twisted pair port	CN1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Network connection is good
LED1	Green	Off	Network connection is broken
LED2	Unidentified	Blinking	Data is being transmitted/received
LED2	Unidentified	Off	Data is not being transmitted/received
