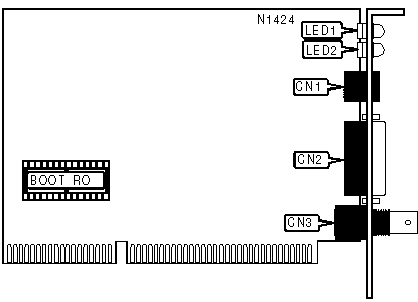

LE1357C Network Card Settings and Configuration

LANCAST

LE1357C

Card Type
Ethernet
Data Bus
16-bit ISA
Maximum network Rate
10Mbps
Topology
Linear Bus/Star
Wiring Type
Unshielded twisted pair
AUI transceiver via DB-15 port
RG-58A/U 50ohm coaxial
Boot ROM
Available

CONNECTIONS
Function
Label
Unshielded twisted pair port
CN1

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Green
On
10Base-T network connection is good
LED1
Green
Off
10Base-T network connection is broken
LED2
Unidentified
Blinking
Data is being transmitted/received
LED2
Unidentified
Off
Data is not being transmitted/received
