ENC-4107 Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	Parallel
Topology	Linear Bus/Star
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial
Boot ROM	Not available

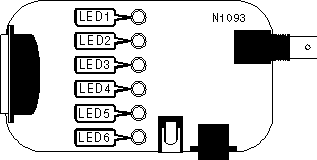

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Polarity is reversed
LED1	Green	Off	Polarity is normal
LED2	Green	On	Network connection is good
LED2	Green	Off	Network connection is broken
LED3	Amber	On	A collision on the network has occurred
LED3	Amber	Off	A collision on the network has not occurred
LED4	Green	On	Data is being received
LED4	Green	Off	Data is not being received
LED5	Green	On	Data is being transmitted
LED5	Green	Off	Data is not being transmitted
LED6	Green	On	Power is on
LED6	Green	Off	Power is not on
