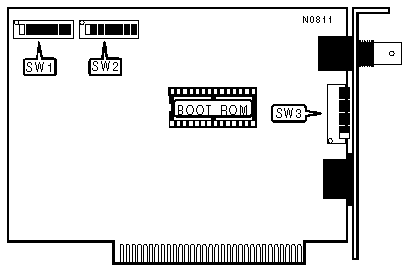

ICE 1 LAN CONTROLLER Network Card Settings and Configuration

INTERNATIONAL COMMUNICATIONS EQUIPMENT CORP.

ICE 1 LAN CONTROLLER

NIC Type:
ARCnet
Transfer Rate:
2.5Mbps
Data Bus:
8-bit ISA
Topology:
Linear Bus
Star
Wiring Type
RG-62A/U 93ohm coaxial
Shielded/Unshielded twisted pair
Boot ROM
Available

I/O ADDRESS
Address
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
»
2E0h
Off
On
Off
Off
Off
On

200h
Off
On
On
On
On
On

210h
Off
On
On
On
On
Off

220h
Off
On
On
On
Off
On

230h
Off
Off
On
On
Off
Off

240h
Off
Off
On
Off
On
Off

250h
Off
On
On
Off
On
Off

260h
Off
On
On
Off
Off
On

270h
Off
On
On
Off
Off
Off

280h
Off
On
Off
On
On
On

290h
Off
On
Off
On
On
Off

2A0h
Off
On
Off
On
Off
On

2B0h
Off
On
Off
On
Off
Off

2C0h
Off
On
Off
Off
On
On

2D0h
Off
On
Off
Off
On
Off

2F0h
Off
On
Off
Off
Off
Off

300h
Off
Off
On
On
On
On

I/O ADDRESS
Address
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
310h
Off
Off
On
On
On
Off
320h
Off
Off
On
On
Off
On
330h
Off
Off
On
On
Off
Off
340h
Off
Off
On
Off
On
On
350h
Off
Off
On
Off
On
Off
360h
Off
Off
On
Off
Off
On
370h
Off
Off
On
Off
Off
Off
380h
Off
Off
Off
On
On
On
390h
Off
Off
Off
On
On
Off
3A0h
Off
Off
Off
On
Off
On
3B0h
Off
Off
Off
On
Off
Off
3C0h
Off
Off
Off
Off
On
On
3D0h
Off
Off
Off
Off
On
Off
3E0h
Off
Off
Off
Off
Off
On
3F0h
Off
Off
Off
Off
Off
Off

MEMORY ADDRESS
RAM Buffer
Boot ROM
SW1/7
SW1/8
SW2/6
SW2/7
SW2/8
C0000h
C8000h
On
On
Off
On
On
CC000h
Disabled
Off
On
Off
On
On
C8000h
CC000h
On
Off
Off
On
On
C8000h
Disabled
Off
Off
Off
On
On
D0000h
D8000h
On
On
Off
On
Off
DC000h
Disabled
Off
On
Off
On
Off
D8000h
DC000h
On
Off
Off
On
Off
D8000h
Disabled
Off
Off
Off
On
Off
E0000h
E8000h
On
On
Off
Off
On
EC000h
Disabled
Off
On
Off
Off
On
E8000h
EC000h
On
Off
Off
Off
On
E8000h
Disabled
Off
Off
Off
Off
On

INTERRUPT SELECT
IRQ
SW2/1
SW2/2
SW2/3
SW2/4
SW2/5
»
IRQ2
Off
Off
Off
Off
On

IRQ3
Off
Off
Off
On
Off

IRQ4
Off
Off
On
Off
Off

IRQ5
Off
On
Off
Off
Off

IRQ7
On
Off
Off
Off
Off

NODE ID NUMBER
ID #
SW3/1
SW3/2
SW3/3
SW3/4
SW3/5
SW3/6
SW3/7
SW3/8
1
On
On
On
On
On
On
On
Off
255
Off
Off
Off
Off
Off
Off
Off
Off
Note:Nodes can be numbered from 1 to 255. The switches are a binary representation of the node numbers. When a switch is off, the corresponding bit is set to 1 and has the following decimal value: SW3/1=128, SW3/2=64, SW3/3=32, SW3/4=16, SW3/5=8, SW3/6=4, SW3/7=2, SW3/8=1.
