TPAIR-406, 6-PORT 10BASE/T HUB CARD Network Card Settings and Configuration
INTELLICOM, INC.
TPAIR-406, 6-PORT 10BASE/T HUB CARD
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 8/16-bit ISA |
Topology | Star |
Wiring Type | Shielded/Unshielded twisted pair (6 RJ-45 ports) |
Boot ROM | Not available |

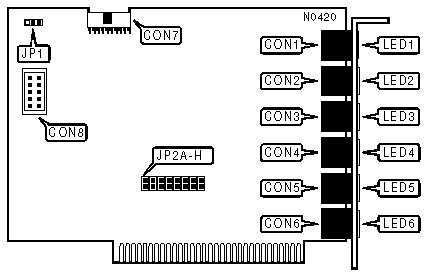

CONNECTORS | |
Funciton | Location |
Inter-bus connector | CON7 |
TPair-410 AUI connector | CON8 |
Note:The Inter-bus connector is used to connect the card to other TPair-406's and TPair-426's to form a Hub-group. Up to four TPair 406's or three TPair-406's and one TPair-426 can be attached in a cascade fashion via the Inter-bus connectors and the supplied ribbon cable. The TPair-410 AUI connector is used to connect a TPair-406 to a TPair-410. Only one TPair-410 may be used per Hub-group. | |
SLAVE/MASTER MODE | ||
Setting | JP1 | |
| » | Master | Pins 1 & 2 Closed |
Slave | Pins 2 & 3 Closed | |
Note:If the card is connected to a TPair-426, the card must be set to slave. If the card is connected only to other TPair-406's or TPair-406's and a single TPair-410, one of the TPair-406 cards must be set to Master and the
remaining TPair-406's must be set to slave.
| ||
I/O BASE ADDRESS | |||||||||
Address | JP2A | JP2B | JP2C | JP2D | JP2E | JP2F | JP2G | JP2H | |
| » | 300h | Closed | Open | Open | Open | Open | Open | Open | Open |
310h | Open | Closed | Open | Open | Open | Open | Open | Open | |
320h | Open | Open | Closed | Open | Open | Open | Open | Open | |
330h | Open | Open | Open | Closed | Open | Open | Open | Open | |
340h | Open | Open | Open | Open | Closed | Open | Open | Open | |
350h | Open | Open | Open | Open | Open | Closed | Open | Open | |
360h | Open | Open | Open | Open | Open | Open | Closed | Open | |
370h | Open | Open | Open | Open | Open | Open | Open | Closed | |
DIAGNOSTIC LED(S) | ||
LED | Status | Condition |
LED1 | On | Network connection is good (CON1) |
LED1 | Off | Network connection is broken (CON1) |
LED2 | On | Network connection is good (CON2) |
LED2 | Off | Network connection is broken (CON2) |
LED3 | On | Network connection is good (CON3) |
LED3 | Off | Network connection is broken (CON3) |
LED4 | On | Network connection is good (CON4) |
LED4 | Off | Network connection is broken (CON4) |
LED5 | On | Network connection is good (CON5) |
LED5 | Off | Network connection is broken (CON5) |
LED6 | On | Network connection is good (CON6) |
LED6 | Off | Network connection is broken (CON6) |
