AUTO BUSMASTER PCI, AUTO LANSTREAMER PCI Network Card Settings and Configuration







IBM CORPORATION

AUTO BUSMASTER PCI, AUTO LANSTREAMER PCI

Card Type

Network Interface Card

NIC Type

Token Ring

Maximum Onboard Memory

Unidentified

Boot ROM

Unidentified

Network Transfer Rate

10Mbps

Topology

Ring

Wiring Type

Unshielded twisted pair

Data Bus

32-bit PCI

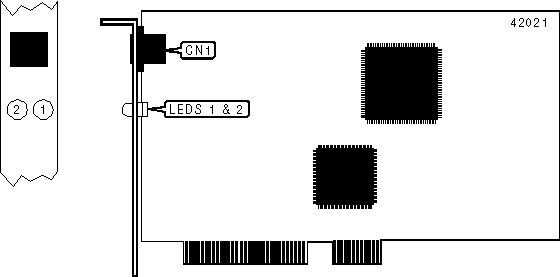

CONNECTIONS

Function

Label

UTP connector

CN1

DIAGNOSTIC LED(S)

LED1 (Green)

LED2 (Red)

Condition

Blinking

Blinking

Waiting for initialization

Off

Off

Initialization in progress or computer turned off

Off

Blinking

Self-diagnostic tests complete (no errors)

Off

On

Network connection is good

On

Off

Self-diagnostic tests complete (errors detected)

Blinking

Off

Network connection is broken and: a) open failed, and wire fault was detected, or b) auto-removal test failed

Blinking

On

Beaconing or hard error detected

On

On

Adapter failure
