PC NETWORK ADAPTER II (BROADBAND) Network Card Settings and Configuration







IBM CORPORATION

PC NETWORK ADAPTER II (BROADBAND)

NIC Type

Broadband

Transfer Rate

Unidentified

Data Bus

8-bit ISA

Topology

Star

Wiring Type

RG-11/U

RG-59A/U coaxial

Boot ROM

Not Available

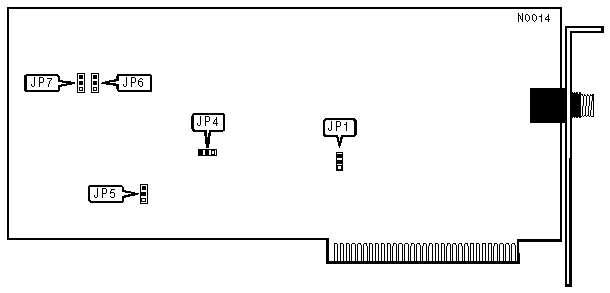

INTERRUPT REQUEST SELECTION

IRQ

JP1

2

Pins 1 & 2 closed



3

Pins 2 & 3 closed

I/O ADDRESS SELECTION

Address

JP4

620h

Pins 1 & 2 closed



628H

Pins 2 & 3 closed

BASE MEMORY ADDRESS SELECTION

Address

JP5

CC00h

Pins 1 & 2 closed



DC00h

Pins 2 & 3 closed

ROM BIOS CONFIGURATION

Setting

JP7

Disabled

Pins 2 & 3 closed

Enabled

Pins 1 & 2 closed

BOOT ROM

Setting

JP6

Disabled

Pins 1 & 2 closed

Enabled

Pins 2 & 3 closed

MISCELLANEOUS TECHNICAL NOTES

The DMA channel is permanently fixed at 3. If two adapters will be installed into one station then disable the ROM BIOS on the second adapter.
