1000C/V2.3 Network Card Settings and Configuration
EDIMAX
1000C/V2.3
Card Type | Network Interface Card |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Available |
Network Transfer Rate | 10Mbps |
Topology | Linear Bus |
Wiring Type | AUI, RG-58A/U 50ohm coaxial |
Data Bus | 8-bit ISA |

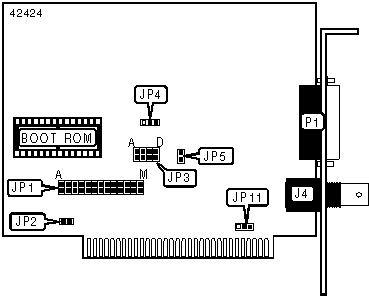

CONNECTIONS | |||
Function | Label | Function | Label |
BNC connector | J4 | AUI connector | P1 |
External LED connector | JP2 |
|
|
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
» | Boot ROM disabled | JP5 | Open |
| Boot ROM enabled | JP5 | Closed |
BASE I/O ADDRESS SELECTION | ||||
Setting | JP1/A | JP1/B | JP1/C | |
» | 300h | Closed | Closed | Closed |
| 320h | Closed | Closed | Open |
| 340h | Closed | Open | Closed |
| 360h | Closed | Open | Open |
INTERRUPT SELECTION | |||||||
IRQ | JP1/D | JP1/E | JP1/F | JP1/G | JP1/H | JP1/I | |
| 2 | Closed | Open | Open | Open | Open | Open |
» | 3 | Open | Closed | Open | Open | Open | Open |
| 4 | Open | Open | Closed | Open | Open | Open |
| 5 | Open | Open | Open | Closed | Open | Open |
| 6 | Open | Open | Open | Open | Closed | Open |
| 7 | Open | Open | Open | Open | Open | Closed |
DMA CHANNEL SELECTION | ||||
Channel | JP1/J | JP1/K | JP1/L | JP1/M |
1 | Closed | Open | Closed | Open |
3 | Open | Closed | Open | Closed |
CABLE TYPE SELECTION | ||
Type | JP4 | JP11 |
AUI | Pins 2 & 3 closed | Pins 1 & 2 closed |
BNC | Pins 1 & 2 closed | Pins 2 & 3 closed |
ROM ADDRESS SELECTION | |||||
Address | JP3/A | JP3/B | JP3/C | JP3/D | |
| C000h | Closed | Closed | Closed | Closed |
| C400h | Open | Closed | Closed | Closed |
» | C800h | Closed | Open | Closed | Closed |
| CC00h | Open | Open | Closed | Closed |
| D000h | Closed | Closed | Open | Closed |
| D400h | Open | Closed | Open | Closed |
| D800h | Closed | Open | Open | Closed |
| DC00h | Open | Open | Open | Closed |
