2000RA 2-IN-1 Network Card Settings and Configuration
EDIMAX COMPUTER CORPORATION
2000RA 2-IN-1
NIC Type | Ethernet |
Network Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Linear Bus, Star |
Wiring Type | Unshielded twisted pair (location unidentified) RG-58A/U 50ohm coaxial (location unidentified) |
Boot ROM | Available (location unidentified) |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
» | Boot ROM Disabled | JP1/A | Open |
| Boot ROM Enabled | JP1/A | Closed |
» | Software configuration - Jumperless mode | JP2/A | Closed |
| Hardware configuration - Jumpered mode | JP2/A | Open |
BASE I/O ADDRESS SELECTION | |||
Address | JP1/E | JP1/F | JP1/G |
200h | Closed | Open | Open |
220h | Closed | Open | Closed |
240h | Closed | Closed | Open |
260h | Closed | Closed | Closed |
300h | Open | Open | Open |
320h | Open | Open | Closed |
340h | Open | Closed | Open |
360h | Open | Closed | Closed |
INTERRUPT SELECTION | |||||||||
IRQ | JP2/B | JP2/C | JP2/D | JP2/E | JP2/F | JP2/G | JP2/H | JP2/I | |
| 2 | Closed | Open | Open | Open | Open | Open | Open | Open |
» | 3 | Open | Closed | Open | Open | Open | Open | Open | Open |
| 4 | Open | Open | Closed | Open | Open | Open | Open | Open |
| 5 | Open | Open | Open | Closed | Open | Open | Open | Open |
| 10 | Open | Open | Open | Open | Closed | Open | Open | Open |
| 11 | Open | Open | Open | Open | Open | Closed | Open | Open |
| 12 | Open | Open | Open | Open | Open | Open | Closed | Open |
| 15 | Open | Open | Open | Open | Open | Open | Open | Closed |
Note: When setting IRQ leave JP2/A open. | |||||||||
BOOT ROM SIZE SELECTION | ||||
Size | JP1/B | JP1/C | JP1/D | |
| C0000h | Open | Open | Open |
| C4000h | Open | Open | Closed |
» | C8000h | Open | Closed | Open |
| CC000h | Open | Closed | Closed |
| D0000h | Closed | Open | Open |
| D4000h | Closed | Open | Closed |
| D8000h | Closed | Closed | Open |
| DC000h | Closed | Closed | Closed |
Note: When setting Boot ROM Address make sure jumper JP1/A is closed. | ||||

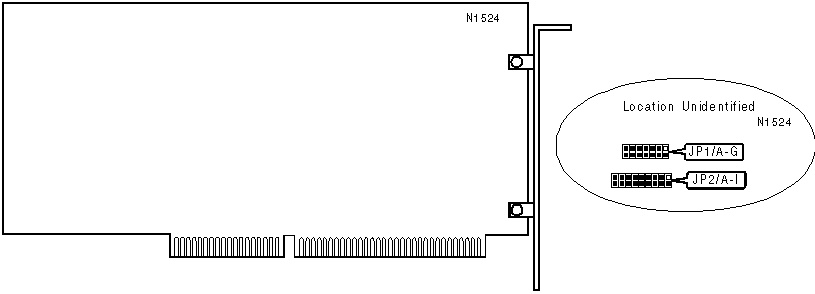

TECHNICAL NOTE |
Note: The location of the 2 LEDs for network activity is unidentified. |
