EN-9200P3 Network Card Settings and Configuration
DANPEX CORPORATION
EN-9200P3
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 32-bit EISA |
Topology | Linear Bus/Star |
Wiring Type | Unshielded twisted pair AUI Transceiver via DB-15 port RG-58A/U 50ohm coaxial |
Boot ROM | Available |

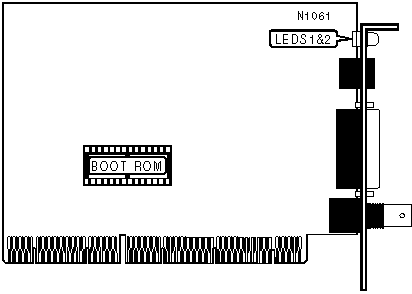

DIAGNOSTIC LED(S) | ||
LED | Status | Condition |
LED1 | On | Link status is good |
LED1 | Off | Link status is not good |
LED2 | On | Data is being received |
LED2 | Off | Data is not being received |
