EN-2010BT Network Card Settings and Configuration

DANPEX CORPORATION

EN-2010BT

NIC Type
Ethernet
Transfer Rate
10Mbps
Data Bus
16-bit ISA
Topology
Star
Wiring Type
Shielded/Unshielded twisted pair
AUI transceiver via DB-15 port
Boot ROM
Available

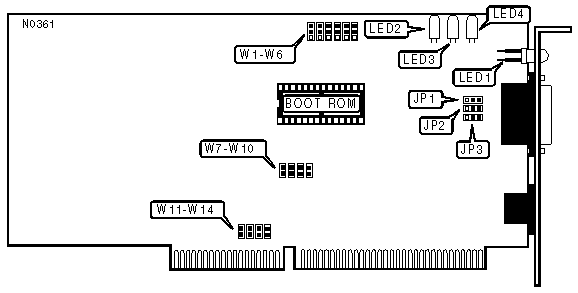

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Green
On
Data is being received
LED1
Green
Off
Data is not being received
LED2
Red
On
Card is transmitting constantly (Jabber)
LED2
Red
Off
Normal operation
LED3
Green
On
Data is being transmitted
LED3
Green
Off
Data is not being transmitted
LED4
Yellow
On
Collision detected on network
LED4
Yellow
Off
No collisions detected on network

SEGMENT LENGTH
Length
JP1
»
Less than 100m
Pins 2 & 3 closed

Greater than 100m
Pins 1 & 2 closed
Note:Segment length is the total length of cable between the card and the multiport repeater (MPR).

SIGNAL QUALITY ERROR (SQE) TEST
Setting
JP2
»
Disabled
Pins 2 & 3 closed

Enabled
Pins 1 & 2 closed
Note:The Signal Quality Error (SQE) test is a test of the collision circuitry and path.
LINK INTEGRITY TEST
Setting
JP3
»
Enabled
Pins 1 & 2 closed

Disabled
Pins 2 & 3 closed
Note:The link integrity test is valid only when the cable type is shielded/unshielded twisted pair.
CABLE TYPE
Type
W1 - W6
»
Shielded/Unshielded twisted pair
Pins 1 & 2 closed

AUI transceiver via DB-15 port
Pins 2 & 3 closed
COMPATIBILITY MODE
Setting
W7
»
Disabled
Open

Enabled
Closed
Note:If the system in which the card is to be installed uses a Chips & Technology chipset, or if the system does not boot properly with the card installed, compatibility mode should be enabled (W7 closed).
I/O BASE ADDRESS & BOOT ROM BASE ADDRESS
I/O Address
Boot ROM Address
W8
W9
»
300h
C8000h
Closed
Closed

320h
CC000h
Open
Closed

340h
D0000h
Closed
Open

360h
N/A
Open
Open
Note:I/O address 360h cannot be used when a boot ROM is installed.
BOOT ROM
Setting
W10
»
Disabled
Open

Enabled
Closed
INTERRUPT REQUEST
IRQ
W11
W12
W13
W14

2/9
Closed
Open
Open
Open
»
3
Open
Closed
Open
Open

4
Open
Open
Closed
Open

5
Open
Open
Open
Closed
