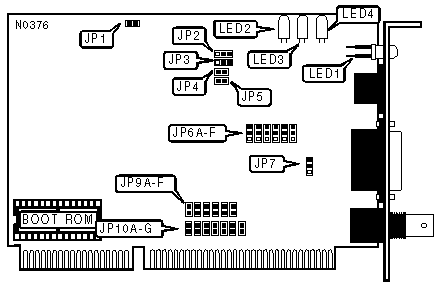

EN-2200BT Network Card Settings and Configuration
DANPEX CORPORATION
EN-2200BT
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Star Linear bus |
Wiring Type | RG58A/U 50ohm coaxial Shielded/Unshielded twisted pair AUI transceiver via DB-15 port |
Boot ROM | Available |
ACTIVITY LED | |
Setting | JP1 |
Enabled | Closed |
Disabled | Open |
Note:If the network hub has an activity LED for each line, setting this option to "enabled" will allow the hub LED to
| |
LINK INTEGRITY TEST | ||
Setting | JP2 | |
| » | Enabled | Pins 1 & 2 closed |
Disabled | Pins 2 & 3 closed | |
Note:The link integrity test is valid only when the cable type is shielded/unshielded twisted pair. | ||
CABLE TYPE | |||
Type | JP3 | JP6A - JP6F | |
RG58A/U 50ohm coaxial | Pins 2 & 3 closed | Pins 1 & 2 closed | |
| » | Shielded/Unshielded twisted pair | Pins 1 & 2 closed | N/A |
AUI transceiver via DB-15 port | Pins 2 & 3 closed | Pins 2 & 3 closed | |
Note:When the cable type is twisted pair, the settings for JP6A - JP6F are not used. | |||
WAIT STATE | |||
Setting | JP4 | JP5 | |
| » | 0 wait states | Open | Open |
1 wait state | Open | Closed | |
| 2 wait states | Closed | Open | |
ONBOARD TERMINATOR | ||
Setting | JP7 | |
| » | Disabled | Pins 1 & 2 closed |
Enabled | Pin 2 & 3 closed | |
Note:If the card is on either side of a coaxial segment, the onboard terminator can be enabled instead of using an
| ||
BOOT ROM | ||
Setting | JP9A | |
| » | Disabled | Open |
Enabled | Closed | |
BOOT ROM ADDRESS | |||
Boot ROM Address | JP9B | JP9C | JP9D |
C8000h | Closed | Open | Closed |
CC000h | Open | Open | Closed |
D0000h | Closed | Closed | Open |
D4000h | Open | Closed | Open |
I/O BASE ADDRESS | |||
I/O Address | JP9E | JP9F | |
| » | 300h | Closed | Closed |
320h | Open | Closed | |
340h | Closed | Open | |
360h | Open | Open | |
INTERRUPT REQUEST | ||||||||
IRQ | JP10A | JP10B | JP10C | JP10D | JP10E | JP10F | JP10G | |
2/9 | Closed | Open | Open | Open | Open | Open | Open | |
| » | 3 | Open | Closed | Open | Open | Open | Open | Open |
4 | Open | Open | Closed | Open | Open | Open | Open | |
5 | Open | Open | Open | Closed | Open | Open | Open | |
10 | Open | Open | Open | Open | Closed | Open | Open | |
12 | Open | Open | Open | Open | Open | Closed | Open | |
15 | Open | Open | Open | Open | Open | Open | Closed | |
DIAGNOSTIC LED(S) | ||
LED | Status | Condition |
LED1 | Blinking | Data is being transmitted |
LED1 | Off | Data is not being transmitted |
LED2 | On | Twisted pair connection is good |
LED2 | Off | Twisted pair connection is broken |
LED3 | Blinking | Data is being received |
LED3 | Off | Data is not being received |
LED4 | On | Collision detected on network |
LED4 | Off | No collisions detected on network |
Note:LED2 will only funtion when the cable type is twisted pair, otherwise LED2 will remain off. | ||
