EN-2000T Network Card Settings and Configuration
DANPEX CORPORATION

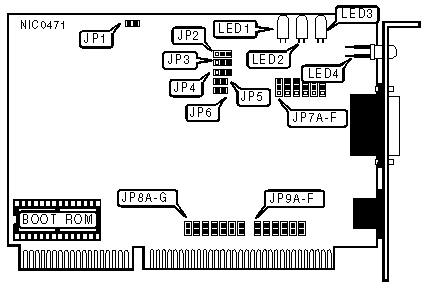

EN-2000T
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Star |
Wiring Type | Unshielded twisted pair AUI transceiver via DB-15 port |
Boot ROM | Available |
ACTIVITY LED | |
Setting | JP1 |
Enabled | Closed |
Disabled | Open |
Note:If the network hub has an activity LED for each line, setting this option to enabled will allow the hub LED to operate properly. | |
LINK INTEGRITY TEST | ||
Setting | JP2 | |
| » | Enabled | Pins 1 & 2 closed |
Disabled | Pins 2 & 3 closed | |
Note:The link integrity test is valid only when the cable type is shielded/unshielded twisted pair. | ||
SIGNAL QUALITY ERROR (SQE) TEST | ||
Setting | JP3 | |
| » | Disabled | Pins 2 & 3 closed |
Enabled | Pins 1 & 2 closed | |
Note:Signal Quality Error (SQE) is a test of the collision circuitry and path. | ||
SEGMENT LENGTH | ||
Length | JP4 | |
| » | Less than 100m | Pins 2 & 3 closed |
Greater than 100m | Pins 1 & 2 closed | |
Note:Segment length is the total length of cable between the two farthest cards on the segment. Each card on the segment must have this option set the same. | ||
WAIT STATE | |||
Setting | JP5 | JP6 | |
| » | 0 wait states | Open | Open |
1 wait state | Closed | Open | |
2 wait states | Open | Closed | |
CABLE TYPE | ||
Type | JP7A - JP7F | |
| » | Unshielded twisted pair | Pins 1 & 2 closed |
AUI transceiver via DB-15 port | Pins 2 & 3 closed | |
INTERRUPT REQUEST | ||||||||
IRQ | JP8A | JP8B | JP8C | JP8D | JP8E | JP8F | JP8G | |
2/9 | Closed | Open | Open | Open | Open | Open | Open | |
| » | 3 | Open | Closed | Open | Open | Open | Open | Open |
4 | Open | Open | Closed | Open | Open | Open | Open | |
5 | Open | Open | Open | Closed | Open | Open | Open | |
10 | Open | Open | Open | Open | Closed | Open | Open | |
12 | Open | Open | Open | Open | Open | Closed | Open | |
15 | Open | Open | Open | Open | Open | Open | Closed | |
BOOT ROM | ||
Setting | JP9A | |
| » | Disabled | Open |
Enabled | Closed | |
BOOT ROM ADDRESS | |||
Boot ROM Address | JP9B | JP9C | JP9D |
C8000h | Closed | Open | Closed |
CC000h | Open | Open | Closed |
D0000h | Closed | Closed | Open |
D4000h | Open | Closed | Open |
I/O BASE ADDRESS | |||
I/O Address | JP9E | JP9F | |
| » | 300h | Closed | Closed |
320h | Open | Closed | |
340h | Closed | Open | |
360h | Open | Open | |
DIAGNOSTIC LED(S) | ||
LED | Status | Condition |
LED1 | On | Twisted pair connection is good |
LED1 | Off | Twisted pair connection is broken |
LED2 | On | Data is being received |
LED2 | Off | Data is not being received |
LED3 | On | Collision detected on network |
LED3 | Off | Normal operation |
LED4 | On | Data is being transmitted |
LED4 | Off | Data is not being transmitted |
Note:LED1 will only funtion when the cable type is twisted pair, otherwise LED1 will remain off. | ||
