EN-2000PB/EN-2000PT/EN-2000P3 Network Card Settings and Configuration

DANPEX CORPORATION

EN-2000PB/EN-2000PT/EN-2000P3

NIC Type:
Ethernet
Transfer Rate:
10Mbps
Data Bus:
16-bit ISA
Topology:
Linear bus
Star
Wiring Type
AUI transceiver via DB-15 port (EN-2000P3, EN-2000P)
RG-58A/U 50ohm coaxial (EN-2000P3, EN-2000P)
Shielded/Unshielded twisted pair (EN-2000P3, EN2000PT)
Boot ROM
Available

CONNECTIONS
Purpose
Location

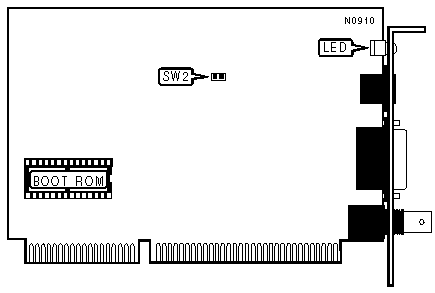

External LED connector
SW2

DIAGNOSTIC LEDS
LED
Status
Condition
LED1
On
Network connection is good (UTP connection only)
LED1
Off
Network connection is broken
LED2
On
Data is being received or transmitted
LED2
Off
Data is not being received or transmitted
LED1 exists on models EN-2000PT and EN-2000P3 only.
