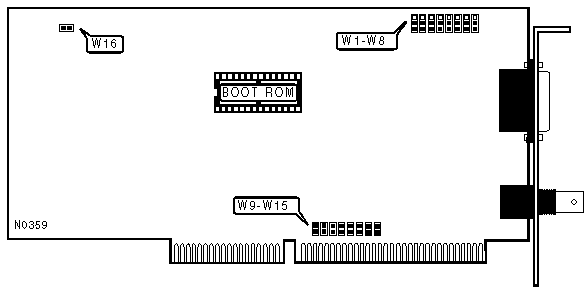

EN-2000 Network Card Settings and Configuration
DANPEX CORPORATION
EN-2000
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Linear Bus |
Wiring Type | RG58A/U 50ohm coaxial AUI transceiver via DB-15 port |
Boot ROM | Available |
CABLE TYPE | ||
Type | W1 - W8 | |
| » | RG58A/U 50ohm coaxial | Pins 2 & 3 closed |
AUI transceiver via DB-15 port | Pins 1 & 2 closed | |
I/O BASE ADDRESS & BOOT ROM BASE ADDRESS | ||||
I/O Address | Boot ROM Address | W9 | W10 | |
| » | 300h | C8000h | Closed | Closed |
320h | CC000h | Open | Closed | |
340h | D0000h | Closed | Open | |
360h | N/A | Open | Open | |
Note:I/O address 360h cannot be used when a boot ROM is installed. | ||||
BOOT ROM | ||
Setting | W11 | |
| » | Disabled | Open |
Enabled | Closed | |
INTERRUPT REQUEST | |||||
IRQ | W12 | W13 | W14 | W15 | |
2 | Closed | Open | Open | Open | |
| » | 3 | Open | Closed | Open | Open |
4 | Open | Open | Closed | Open | |
5 | Open | Open | Open | Closed | |
COMPATIBILITY MODE | ||
Setting | W16 | |
| » | Disabled | Open |
Enabled | Closed | |
Note:If the system in which the card is to be installed uses a Chips & Technology chipset, or if the system does
| ||
