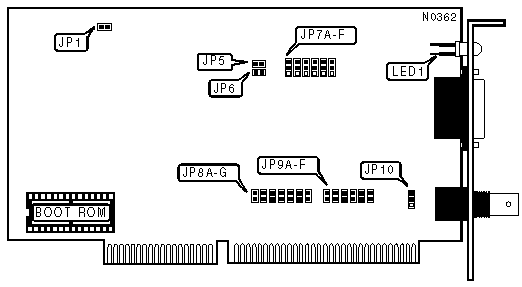

EN-2000B Network Card Settings and Configuration
DANPEX CORPORATION
EN-2000B
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Linear Bus |
Wiring Type | RG58A/U 50ohm coaxial AUI transceiver via DB-15 port |
Boot ROM | Available |
ACTIVITY LED | |
Setting | JP1 |
Enabled | Closed |
Disabled | Open |
Note:If the network hub has an activity LED for each line, setting this option to enabled will allow the hub LED to
| |
WAIT STATE | |||
Setting | JP5 | JP6 | |
| » | 0 wait states | Open | Open |
1 wait state | Open | Closed | |
2 wait states | Closed | Open | |
Note:This option is ignored if the card is installed in an IBM PC, PC/XT, or PS/2 Model 30. | |||
CABLE TYPE | ||
Type | JP7A - JP7F | |
| » | RG58A/U 50ohm coaxial | Closed |
AUI transceiver via DB-15 port | Open | |
INTERRUPT REQUEST | ||||||||
IRQ | JP8A | JP8B | JP8C | JP8D | JP8E | JP8F | JP8G | |
2/9 | Closed | Open | Open | Open | Open | Open | Open | |
| » | 3 | Open | Closed | Open | Open | Open | Open | Open |
4 | Open | Open | Closed | Open | Open | Open | Open | |
5 | Open | Open | Open | Closed | Open | Open | Open | |
10 | Open | Open | Open | Open | Closed | Open | Open | |
12 | Open | Open | Open | Open | Open | Closed | Open | |
15 | Open | Open | Open | Open | Open | Open | Closed | |
BOOT ROM | ||
Setting | JP9A | |
| » | Disabled | Open |
Enabled | Closed | |
BOOT ROM ADDRESS | |||
Address | JP9B | JP9C | JP9D |
C8000h | Closed | Open | Closed |
CC000h | Open | Open | Closed |
D0000h | Closed | Closed | Open |
D4000h | Open | Closed | Open |
I/O BASE ADDRESS | |||
Address | JP9E | JP9F | |
| » | 300h | Closed | Closed |
320h | Open | Closed | |
340h | Closed | Open | |
360h | Open | Open | |
ONBOARD TERMINATOR | ||
Setting | JP10 | |
| » | Disabled | Pins 1 & 2 closed |
Enabled | Pins 2 & 3 closed | |
Note:If the card is on either side of the network segment, the onboard terminator may be enabled instead of using a T-connector and an external terminator. | ||
