EN-1010BT Network Card Settings and Configuration

DANPEX CORPORATION

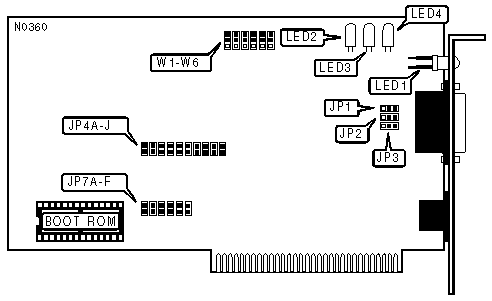

EN-1010BT

NIC Type
Ethernet
Transfer Rate
10Mbps
Data Bus
8-bit ISA
Topology
Star
Wiring Type
Shielded/Unshielded twisted pair
AUI transceiver via DB-15 port
Boot ROM
Available

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Green
On
Data is being received
LED1
Green
Off
Data is not being received
LED2
Red
On
Card is transmitting constantly (Jabber)
LED2
Red
Off
Normal operation
LED3
Green
On
Data is being transmitted
LED3
Green
Off
Data is not being transmitted
LED4
Yellow
On
Collision detected on network
LED4
Yellow
Off
No collisions detected on network

SEGMENT LENGTH
Length
JP1
»
Less than 100m
Pins 2 & 3 closed

Greater than 100m
Pins 1 & 2 closed
Note:Segment length is the total length of cable between the card and the multiport repeater (MPR).

SIGNAL QUALITY ERROR (SQE) TEST
Setting
JP2
»
Disabled
Pins 2 & 3 closed

Enabled
Pins 1 & 2 closed
Note:The Signal Quality Error (SQE) test is a test of the collision circuitry and path.

LINK INTEGRITY TEST
Setting
JP3
»
Enabled
Pins 1 & 2 closed

Disabled
Pins 2 & 3 closed
Note:The link integrity test is valid only when the cable type is shielded/unshielded twisted pair.

INTERRUPT REQUEST
IRQ
JP4A
JP4B
JP4C
JP4D

2/9
Closed
Open
Open
Open
»
3
Open
Closed
Open
Open

4
Open
Open
Closed
Open

5
Open
Open
Open
Closed

FACTORY CONFIGURED SETTINGS
Jumper
Setting
JP4E - JP4H
Open

I/O BASE ADDRESS
Address
JP4I
JP4J
»
300h
Closed
Closed

320h
Open
Closed

340h
Closed
Open

360h
Open
Open

BOOT ROM
Setting
JP7A
»
Disabled
Open

Enabled
Closed

BASE MEMORY ADDRESS
Address
JP7B
JP7C
JP7D
JP7E
JP7F

C0000h
Closed
Closed
Closed
Closed
Closed

C2000h
Open
Closed
Closed
Closed
Closed

C4000h
Closed
Open
Closed
Closed
Closed

C6000h
Open
Open
Closed
Closed
Closed

C8000h
Closed
Closed
Open
Closed
Closed

CA000h
Open
Closed
Open
Closed
Closed

CC000h
Closed
Open
Open
Closed
Closed

CE000h
Open
Open
Open
Closed
Closed

D0000h
Closed
Closed
Closed
Open
Closed

D2000h
Open
Closed
Closed
Open
Closed

D4000h
Closed
Open
Closed
Open
Closed

D6000h
Open
Open
Closed
Open
Closed
»
D8000h
Closed
Closed
Open
Open
Closed

DA000h
Open
Closed
Open
Open
Closed

DC000h
Closed
Open
Open
Open
Closed

DE000h
Open
Open
Open
Open
Closed

E0000h
Closed
Closed
Closed
Closed
Open

E2000h
Open
Closed
Closed
Closed
Open

E4000h
Closed
Open
Closed
Closed
Open

E6000h
Open
Open
Closed
Closed
Open

E8000h
Closed
Closed
Open
Closed
Open

EA000h
Open
Closed
Open
Closed
Open

EC000h
Closed
Open
Open
Closed
Open

EE000h
Open
Open
Open
Closed
Open

F0000h
Closed
Closed
Closed
Open
Open

F2000h
Open
Closed
Closed
Open
Open
Note:Addresses C6000h - CA000h cannot be used in a PC/XT type system.
Addresses C0000h - C4000h & E0000h - F2000h cannot be used in a PC/AT type system.

CABLE TYPE
Type
W1 - W6
»
Shielded/Unshielded twisted pair
Pins 1 & 2 closed

AUI transceiver via DB-15 port
Pins 2 & 3 closed
