NETELLIGENT 16/4 TR PCI IBM UTP/STP CONTROLLER Network Card Settings and Configuration
COMPAQ COMPUTER CORPORATION
NETELLIGENT 16/4 TR PCI IBM UTP/STP CONTROLLER
Card Type | Network interface card |
NIC Type | Token Ring |
Maximum Onboard Memory | Unidentified |
Boot ROM | Not available |
Network Transfer Rate | 4Mbps, 16Mbps |
Topology | Ring |
Wiring Type | Shielded twisted pair (DB-9), Unshielded twisted pair (RJ-45) |
Data Bus | 32-bit PCI |

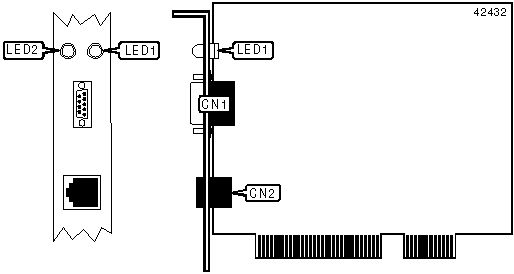

CONNECTIONS | |||
Function | Label | Function | Label |
STP connector (DB-9) | CN1 | UTP connector (RJ-45) | CN2 |
DIAGNOSTIC LED(S) | ||
LED1 (Green) | LED2 (Amber) | Condition |
Blinking | Blinking | Waiting for initialization |
Off | Off | Computer is off or initialization is in progress |
Off | Blinking | Self-diagnostic tests ok |
Off | On | Open and operating correctly |
Note: The orientation of the amber and green LEDs may be reversed on some versions. | ||
