NETELLIGENT 16/4 TR ISA UTP/STP CONTROLLER Network Card Settings and Configuration
COMPAQ COMPUTER CORPORATION
NETELLIGENT 16/4 TR ISA UTP/STP CONTROLLER
Card Type | Network Interface Card |
NIC Type | Token Ring |
Maximum Onboard Memory | Unidentified |
Boot ROM | Not available |
Network Transfer Rate | 4Mbps, 16Mbps |
Topology | Ring |
Wiring Type | Shielded twisted pair (DB-9), Unshielded twisted pair (RJ-45) |
Data Bus | 16-bit ISA |

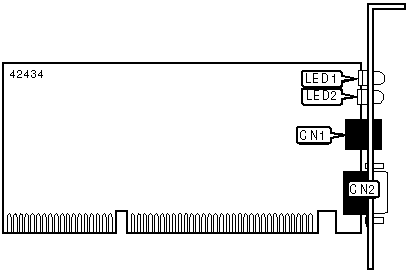

CONNECTIONS | |||
Function | Label | Function | Label |
UTP connector (RJ-45) | CN1 | STP connector (DB-9) | CN2 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Unidentified | On | Network connection is good |
LED1 | Unidentified | Off | Network connection is broken |
LED2 | Unidentified | On | Data is being transmitted |
LED2 | Unidentified | Off | Data is not being transmitted |
